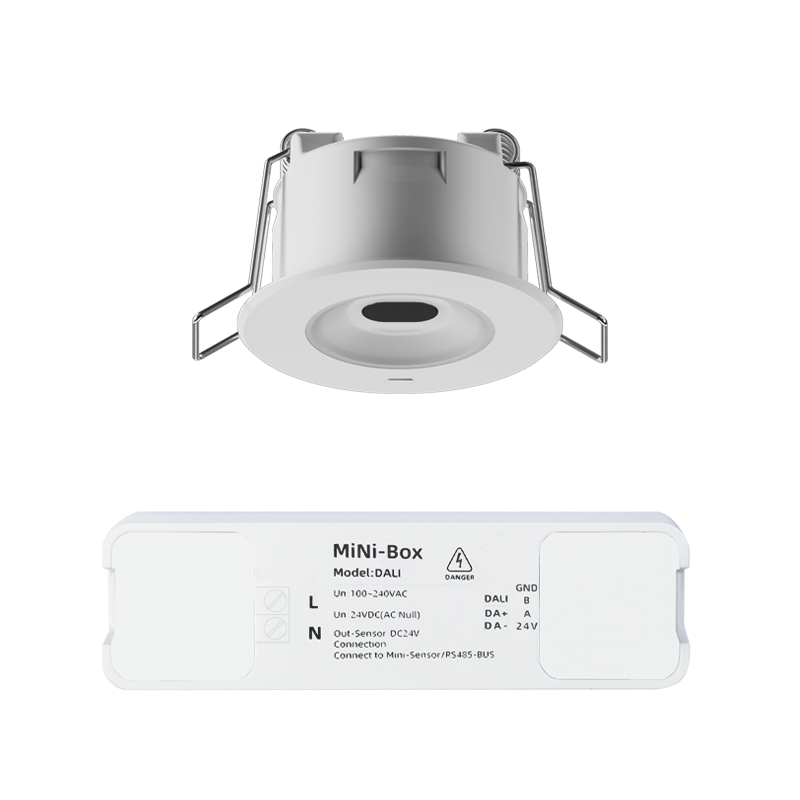

Precise Narrow-Angle Ranging Capability Using Time of Flight (ToF) technology, it achieves narrow-angle detection at 11°, allowing for accurate positioning detection within a small range. It also provides high-precision ranging functions, accurately detecting the distance between the target object and the sensor, offering high-precision depth information. |    |
Accurate Occupancy Detection ToF sensors provide small angle precision ranging functions, suitable for occupancy detection, and can offer diverse and flexible trigger settings. | |
Supports the Tuya System This sensor can seamlessly integrate into the Tuya system, enabling intelligent control of lighting devices, including smart switches, dimming, and making full use of natural light. The openness, modularity, and versatility of the Tuya system allow this sensor to perform excellently in residential, commercial, and industrial applications. | |
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and occupancy but also monitor the surrounding light intensity, providing data support for intelligent lighting control. | |
Ultra Smal Size This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. | |
Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods. | |
| Designation | Value |
| Detection Mode | ToF |
| Mounting Height | 2.0 ~ 4.0m |
| Detection Angle | 11° |
| Detection Range | Detection distance can be set to 0.1-3.2m, When 2.0 m is set, the range diameter is φ 0.4 m. (Note that the pure white and black color will reduce the detection accuracy) |
| Detection Distance | 0.1~3.2m(adjustable) |
| Illumination Sensing | 0 ~ 32000 Lux |
| Product Size | φ43mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 18g |
| STD Power | DC12~30V(Standby power＜0.5W) |
| LTC Power | DC30V or AC100~240V(＜0.5W) |
| Work Temperature | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Output Delay Time |
1 ~ 3600 Seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
