Precise Narrow-Angle Ranging Capability Using Time of Flight (ToF) technology, it achieves narrow-angle detection at 11°, allowing for accurate positioning detection within a small range. It also provides high-precision ranging functions, accurately detecting the distance between the target object and the sensor, offering high-precision depth information. |
   |
|
Accurate Occupancy Detection ToF sensors provide small angle precision ranging functions, suitable for occupancy detection, and can offer diverse and flexible trigger settings. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and occupancy but also monitor the surrounding light intensity, providing data support for intelligent lighting control. |
|
|

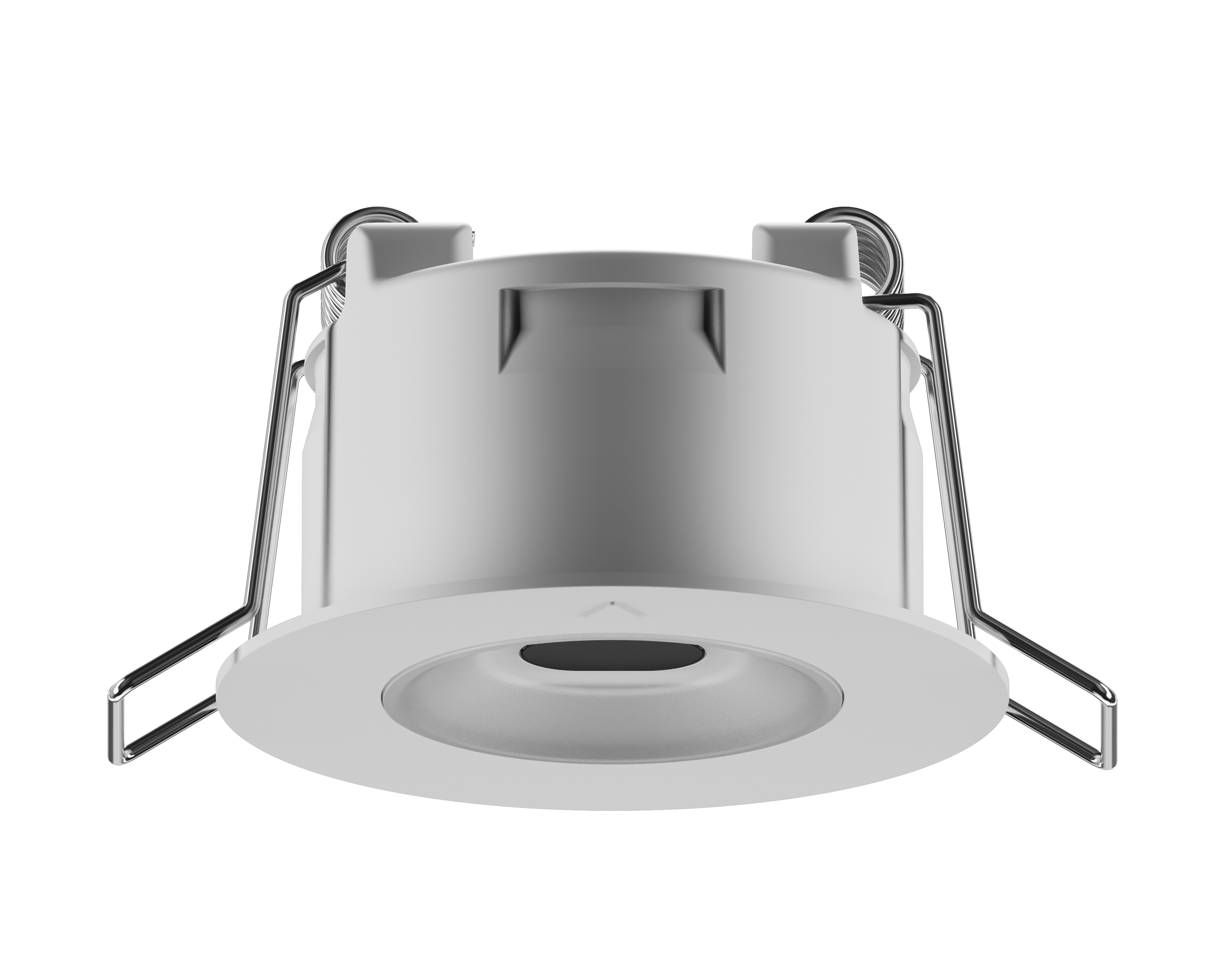

Ultra Smal Size This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. |
|
|
Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods. |
|
| Designation | Value |
| Detection Mode | ToF Time-of-flight sensor |
| Install Height | 2.0 ~ 4.0 meters |
| Detection Angle | 11° |
| Detection Range | When the detection distance is set between 0.1 and 3.2meters， When set to 2.0 meters, the range diameter is φ 0.4 meters (Note that pure white and black color will reduce detection accuracy) |
| Detection Distance | 0.1~3.2 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 4%） |
| Product Dimensions | φ43mm*35mm*25mm |
| Cutout Dimensions | φ35mm |
| Product Weight | 18g |
| Power Input | DC12~30V(power consumption＜0.5W) |
| Work Temperature | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Delay Time | 1 ~ 3600 seconds |
| Interface | Dry Contact |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
