High space radar detection
Accurate detect minor motion states

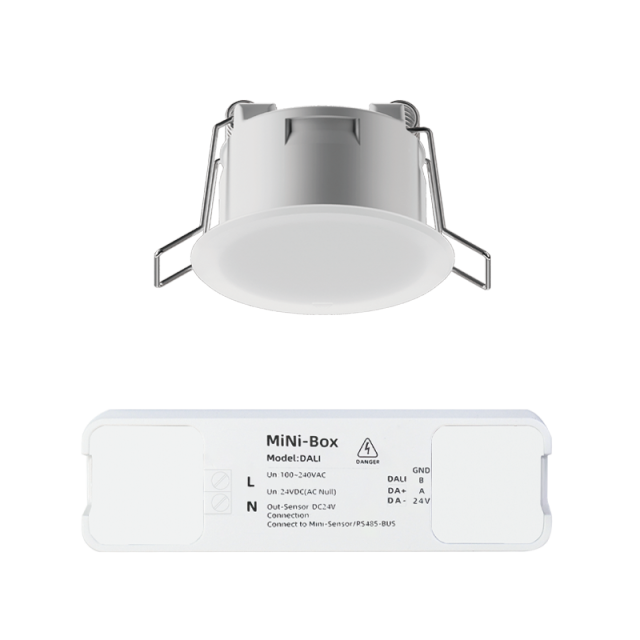

The Creatrol high apace radar motion detection sensor uses a high apace radar chip to transmit and receive microwave high-frequency signals. Through algorithm processing, it can sensitively detect the minor-motion and moving state of the human body even at the altitude of 4 ~ 12 m.Integrated with a single streetlight control line, capable of directly controlling lighting equipment with a maximum load of 300W. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light.
|
Applicability in Wide Open Spaces High apace radar is suitable for installation in high spaces (4-8m), with a large detection range, making it more applicable for various scenarios of large-area motion/minor motion detection. |
   |
|
Directly Switch a Lighting Circuit This sensor can directly switch a lighting circuit with a maximum load of 300W. This means that regardless of the smart scenario it is used in, the sensor can switch the lighting based on detected human minor-motion and motion status, achieving energy savings and automated management. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human minor motion but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. |
|
|
Ultra Small Size This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. |
|
|
Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods. |
|
|
Rich Application Scenarios Suitable for relatively high open spaces such as airports, train stations, factories, schools, and other public spaces, achieving precise energy-saving control with lights turning on when someone is motion/minor motion and off when no one is present. |
|
| Designation | Value |
| Detection Mode | 5.8GHz High Altitude Radar |
| Mounting Height | 2.0 ~12.0m |
| Detection Angle | 360° |
| Detection Range | When the installation height is 8.0m Detection diameter ≤15.0m. |
| Detection Sensitivity | 0~100% |
| Illumination Sensing | 0 ~ 32000 Lux |
| Product Size | φ43mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 18g |
| STD Power | DC12~30V(Standby power＜0.5W) |
| LTC Power | DC30V or AC100~240V(＜0.5W) |
| Work Temperature | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Output Delay Time |
1 ~ 3600 Seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
