High space radar detection
Accurate detect minor motion states

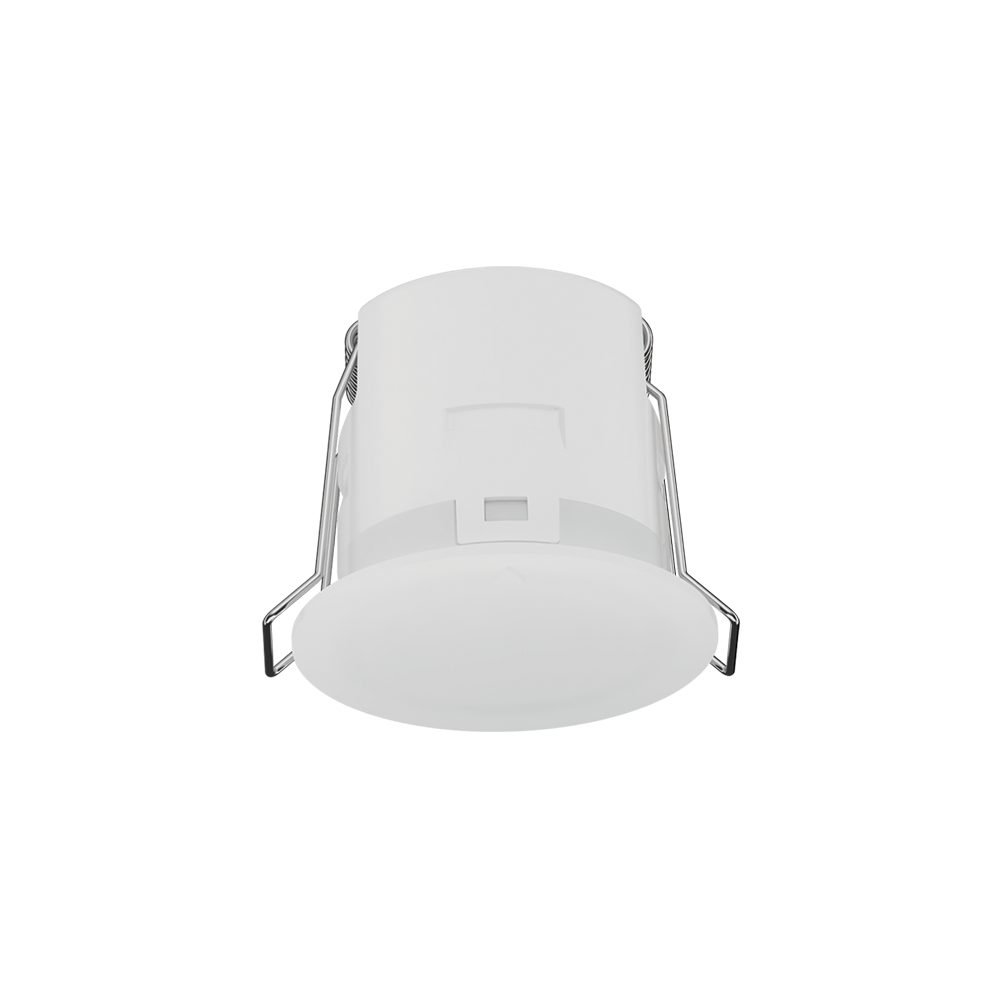

The Creatrol high apace radar motion detection sensor uses a high apace radar chip to transmit and receive microwave high-frequency signals.Able to provide human micro-motion sensing capability for a wide range of high ceiling spaces in the KNX system.Through algorithm processing, it can sensitively detect the minor-motionand moving state of the human body even at the altitude of 4 ~ 12 m.It has a built-in 0-32000Lux digital illuminance counting chip, capable of simultaneously detecting ambient light.
|
Applicability in Wide Open Spaces High apace radar is suitable for installation in high spaces (4-8m), with a large detection range, making it more applicable for various scenarios of large-area motion/minor motion detection. |
   |
|
Applicability in Wide Open Spaces High apace radar is suitable for installation in high spaces (4-8m), with a large detection range, making it more applicable for various scenarios of large-area motion/minor motion detection. |
|
|
Seamlessly Interfacing with the KNX System By integrating with the KNX protocol, this sensor can seamlessly integrate into the KNX system, enabling intelligent control of lighting devices, including smart switches, dimming, and full utilization of natural light. The flexibility and intelligent control capabilities of the sensor, combined with the integration of the KNX protocol, make it an ideal choice for smart lighting control, bringing efficient and energy-saving lighting management to various KNX projects. |
|
|
Ultra Small Size This sensor features a super small 35mm opening and a 35mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. |
|
|
Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods. |
|
|
Rich Application Scenarios Suitable for relatively high open spaces such as airports, train stations, factories, schools, and other public spaces, achieving precise energy-saving control with lights turning on when someone is motion/minor motion and off when no one is present. |
|
| Designation | Value |
| Detection Mode | 5.8GHz High - Ceilinged Space Radar |
| Install Height | 2.0 ~ 12.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 8 meters Micro motion/motion detection diameter ≤ φ15.0 meters |
| Detection Sensitivity | 0~100% |
| Illumination Sensing | 0 ~ 32000 Lux (Accuracy ± 4%） |
| Product Dimensions | φ43mm*35mm*35mm |
| Hole Size | φ35mm，depth ≥ 100mm |
| Product Weight | 26g |
| Working Power Supply | 21~30V DC |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Delay Time | 1 ~ 3600 seconds |
| Bus Input | KNX(21~30V) |
| Bus Current | 10mA |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
