High space radar detection
Accurate detect minor motion states

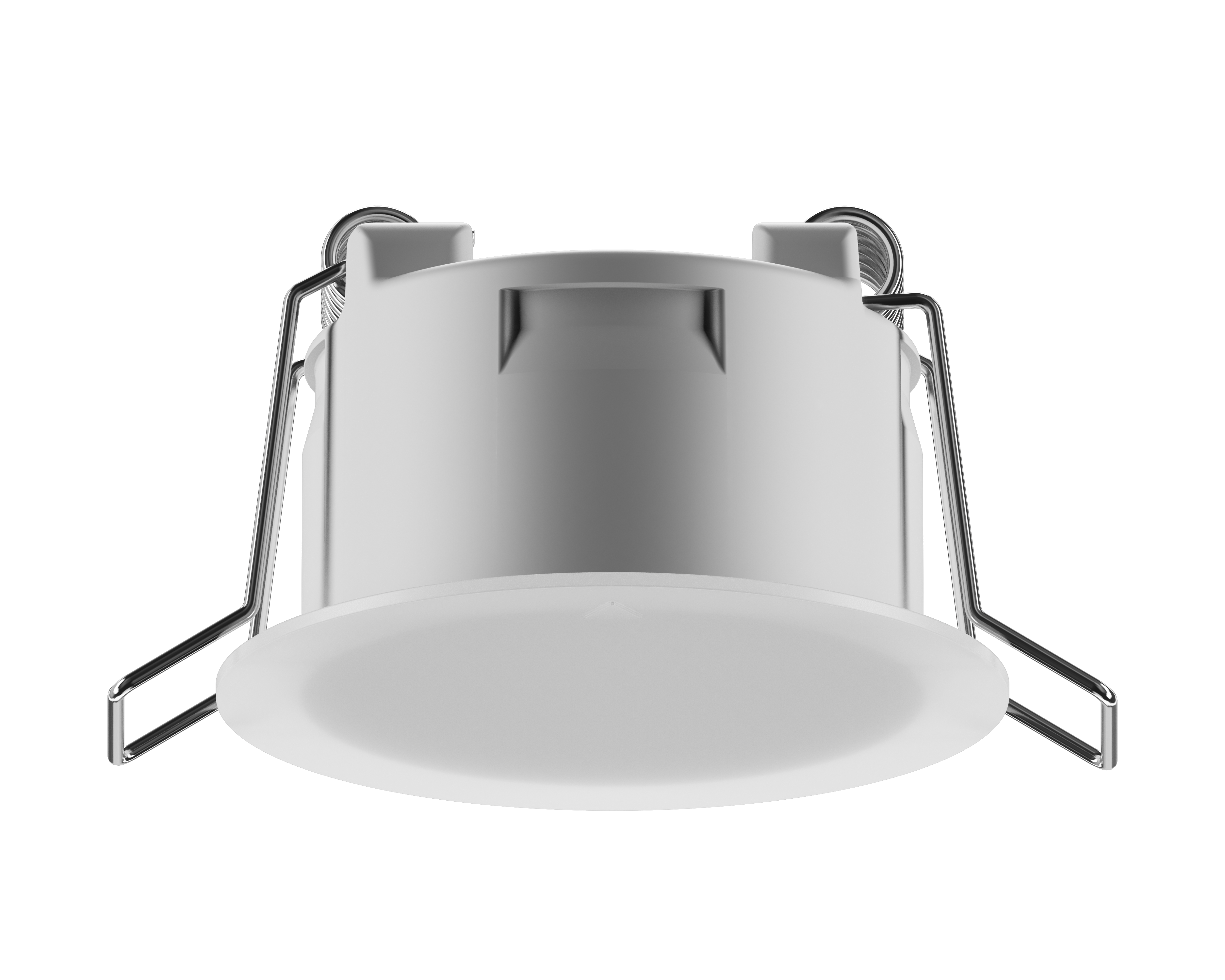

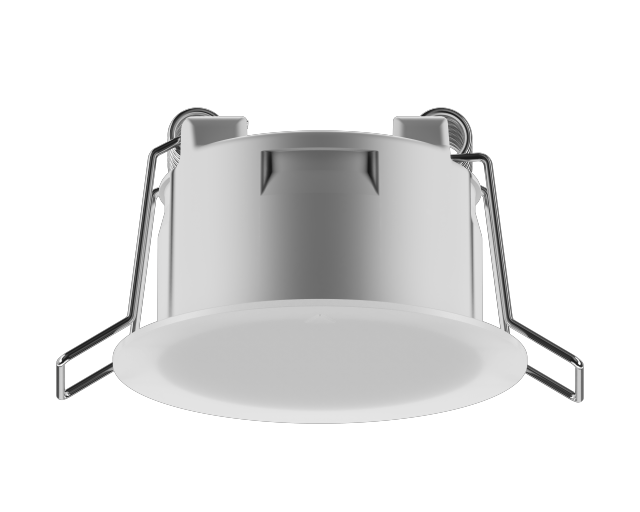

The Creatrol high apace radar motion detection sensor uses a high apace radar chip to transmit and receive microwave high-frequency signals. Through algorithm processing, it can sensitively detect the minor-motionand moving state of the human body even at the altitude of 4 ~ 12 m.It has a built-in 0-32000Lux digital illuminance counting chip, capable of simultaneously detecting ambient light.
|
Applicability in Wide Open Spaces High apace radar is suitable for installation in high spaces (4-8m), with a large detection range, making it more applicable for various scenarios of large-area motion/minor motion detection. |
   |
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human minor motion but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. |
|
|
Ultra Small Size This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. |
|
|
Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods. |
|
|
Rich Application Scenarios Suitable for relatively high open spaces such as airports, train stations, factories, schools, and other public spaces, achieving precise energy-saving control with lights turning on when someone is motion/minor motion and off when no one is present. |
|
| Designation | Value |
| Detection Mode | 5.8GHz High - Ceilinged Space Radar |
| Install Height | 2.0 ~ 12.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 8 meters Micro motion/motion detection diameter ≤ φ15.0 meters |
| Detection Sensitivity | 0~100% |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 4%） |
| Product Dimensions | φ43mm*35mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 18g |
| Power Input | DC12~30V(power consumption＜0.5W) |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Address Range | 01 ~ 99 (decimal) |
| Delay Time | 1 ~ 3600 seconds |
| Interface | RS485 |
| LED Indicator | ① Receive the configuration command and flash for 3 seconds ② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination ③ Can be set to off mode (does not light up when detecting someone) |
