24GHz FMCW radar detection
Accurate detection of presence and minor motion states

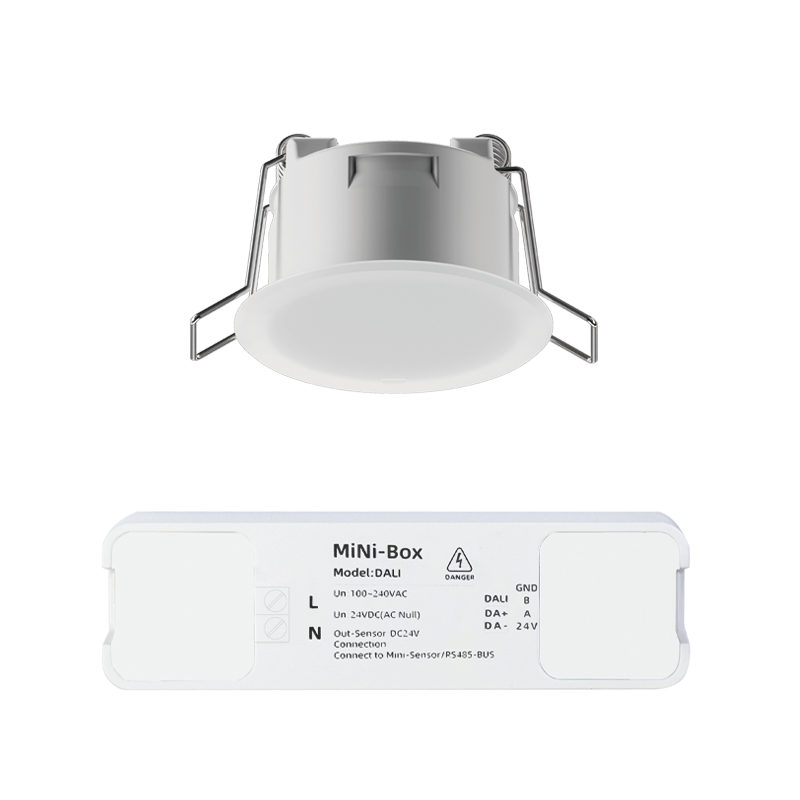

This product supports DALI connection and can accurately detect human presence, providing strong technical support for intelligent lighting control. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. Automatically adjust the light intensity based on ambient brightness, supporting up to 64 individual light control channels.
|
Precise Presence Detection Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing. |
   |
|
Designed Specifically for Smart Lighting Control Scenarios It can accurately detect human presence and subtle movements, confirm human status by analyzing breathing patterns, and monitor ambient light intensity in real-time to automatically adjust lighting brightness. The product supports integration with the DALI system, achieving single control of 64 lighting circuits, providing flexible lighting management solutions. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. |
|
|
FMCW Frequency-Modulated Continuous Wave Radar Chip Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings. |
|
|
Ultra Small Size This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. |
|
|
Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods |
|
|
Rich Application Scenarios Suitable for various scenarios such as homes, schools, office buildings, and parking lots, achieving precise energy-saving control with lights turning on when someone is present and off when no one is there; also applicable in hotel RCU guest control systems for card-free power supply. |
|
| Designation | Value |
| Detection Method | 24GHz millimeter wave radar FMCW (Frequency Modulated Continuous Wave) |
| Install Height | 2.0～4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 2.5～3.5 meters ① Micro - motion and motion detection diameter ≤ φ 8.0 meters ② Maximum diameter for peaceful detection ≤ φ 6.0 meters |
| Detection Distance | 1.5～5 meters (0～100%) |
| Detection Sensitivity | 0~100% |
| Illuminance Sensing | 0 ~ 32000 Lux |
| Product Size | φ43mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 24g |
| Power Input | AC100~240V |
| Work Temperature | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Delay Time | 1 ~ 3600 Seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
