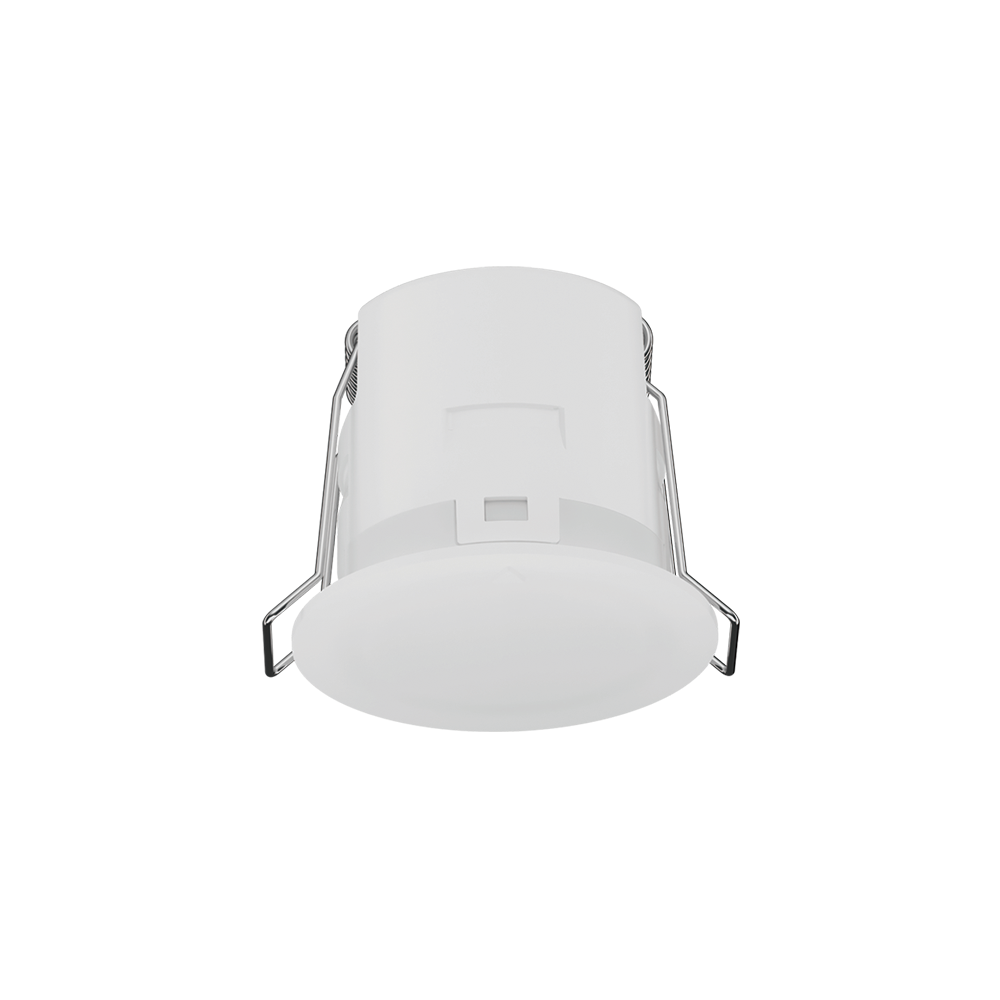

24GHz FMCW radar detection
Accurately detect presence and slight motion
This sensor uses a proprietary Creatrol algorithm to analyze breathing patterns to confirm human presence, providing the KNX system with more accurate human presence sensing data. A built-in 0-32,000 Lux digital illuminance measurement chip enables the sensor to monitor ambient light intensity in real time. This allows the KNX system to automatically adjust indoor lighting to accommodate changes in ambient light, achieving energy-efficient and comfortable lighting.
??? ?Accurate presence detection Using 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movements of the human body, including subtle movements of the chest and abdomen expanding during breathing. |    |
??? ? Seamless connection with KNX system By integrating with the KNX protocol, the sensor can be seamlessly integrated into KNX systems, enabling intelligent control of lighting devices, including smart switching, dimming, and the optimal use of natural light. The sensor's flexibility and intelligent control capabilities, combined with KNX protocol integration, make it an ideal choice for intelligent lighting control, bringing efficient and energy-efficient lighting management to a variety of KNX projects. | |
??? ?Built-in digital illumination measurement chip The product has a built-in 0-32000Lux digital illuminance measurement chip that can simultaneously detect ambient light. This means that the sensor can not only detect human presence and breathing, but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. | |
??? ?FMCW frequency modulated continuous wave radar chip This technology uses an FMCW frequency-modulated continuous wave radar chip, enabling the sensor to continuously adjust its detection range and sensitivity to adapt to different application scenarios and needs, providing more flexible detection settings. | |
??? ? Ultra-small size The sensor adopts a 35mm ultra-small opening and a 35mm ultra-thin body design. It is smaller than 99% of sensors on the market and is easy to install and hide. | |
??? ?Multiple installation methods Supports a variety of mounting accessories to adapt the sensor to different installation environments and requirements, including embedded installation, wall mounting, ceiling extension mounting, adjustable angle mounting, surface mounting and other installation methods. | |
??? Rich application scenarios It is suitable for various scenarios such as homes, schools, office buildings, and parking lots, and can achieve precise energy-saving control to turn on lights when someone is there and turn them off when no one is there. It is also suitable for hotel RCU guest control systems to achieve card-free power supply. | |
| Designation | Value |
| Detection Method | 24GHz millimeter wave radar FMCW (Frequency Modulated Continuous Wave) |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
|
Detection Range |
When the installation height is 2.5 ~ 3.5m ① Minor-motion and motion detection diameter ≤ φ9.0m ② Maximum diameter of presence detection ≤ φ6.0m |
| Detection Distance | 1.5 ~ 5 meters(0~100%) |
| Detection Sensitivity | 0~100% |
| Illumination Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Product Size | φ43mm*35mm*25mm |
| Hole Size | φ35mm,depth ≥ 100mm |
| Product Weight | 26g |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
|
Working Power Supply |
21~30V DC |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
