24GHz FMCW radar detection
Accurately detect presence and slight motion

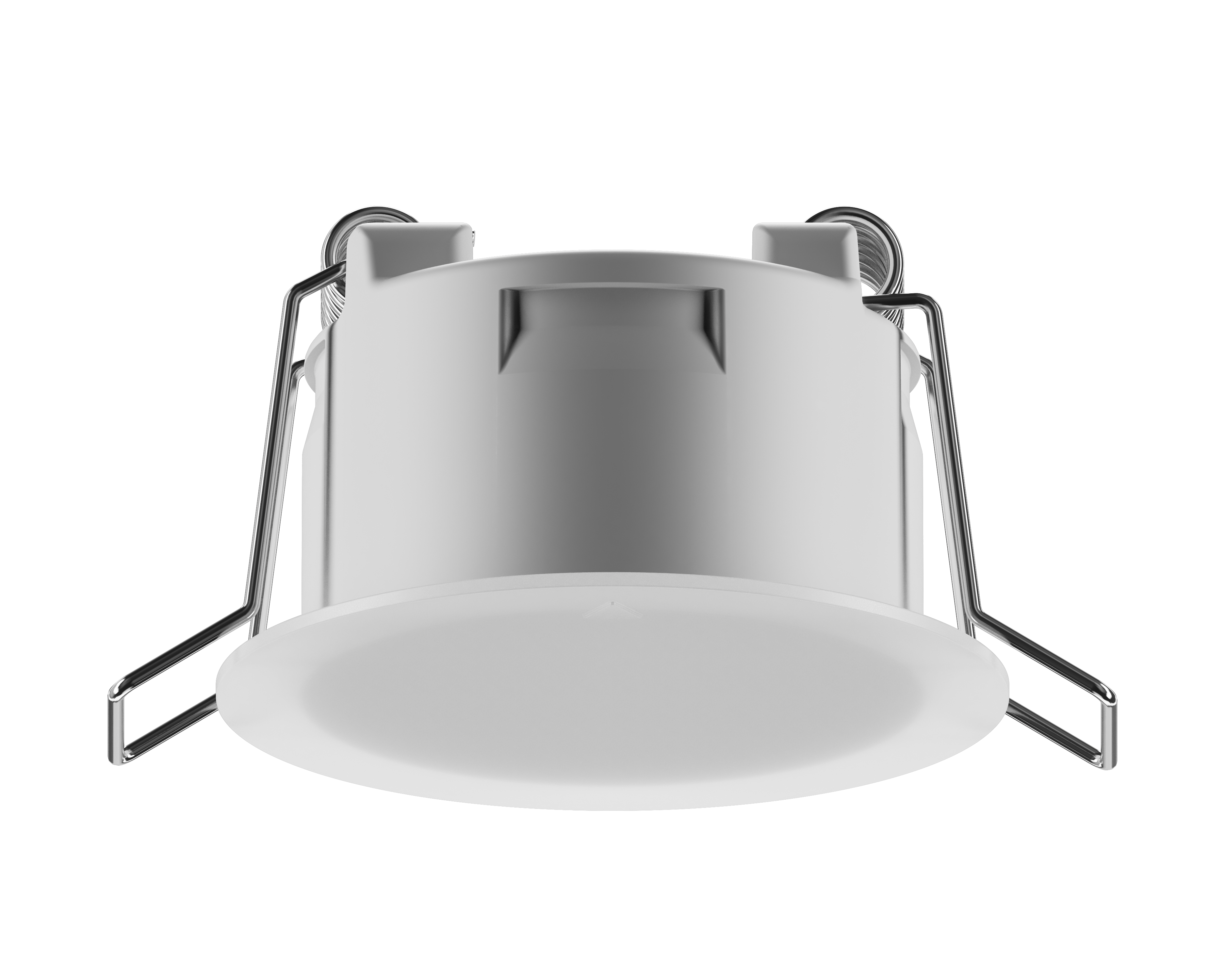

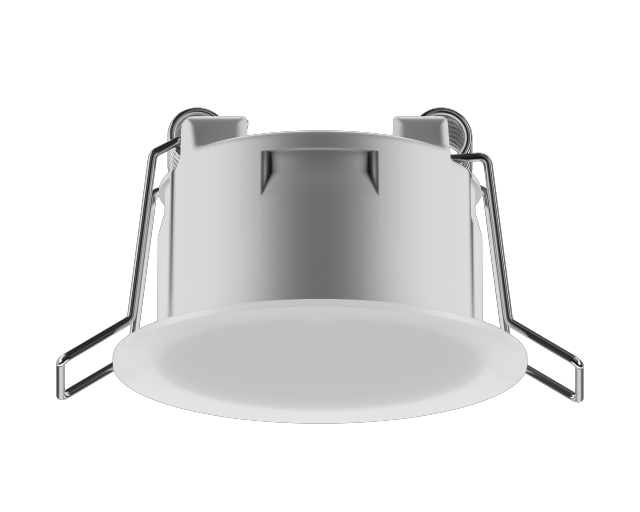

This millimeter-wave radar sensor can detect the presence of humans. It's equipped with an autonomous driving-grade FMCW radar chip and uses Chuangzhi's proprietary algorithm to identify human presence through breathing patterns. It also features a built-in 0-32,000 Lux digital illumination measurement chip that can simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
??? ?Accurate presence detection Using 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movements of the human body, including subtle movements of the chest and abdomen expanding during breathing. |    |
??? ?Built-in digital illumination measurement chip The product has a built-in 0-32000Lux digital illuminance measurement chip that can simultaneously detect ambient light. This means that the sensor can not only detect human presence and breathing, but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. | |
??? ?FMCW frequency modulated continuous wave radar chip This technology uses an FMCW frequency-modulated continuous wave radar chip, enabling the sensor to continuously adjust its detection range and sensitivity to adapt to different application scenarios and needs, providing more flexible detection settings. | |

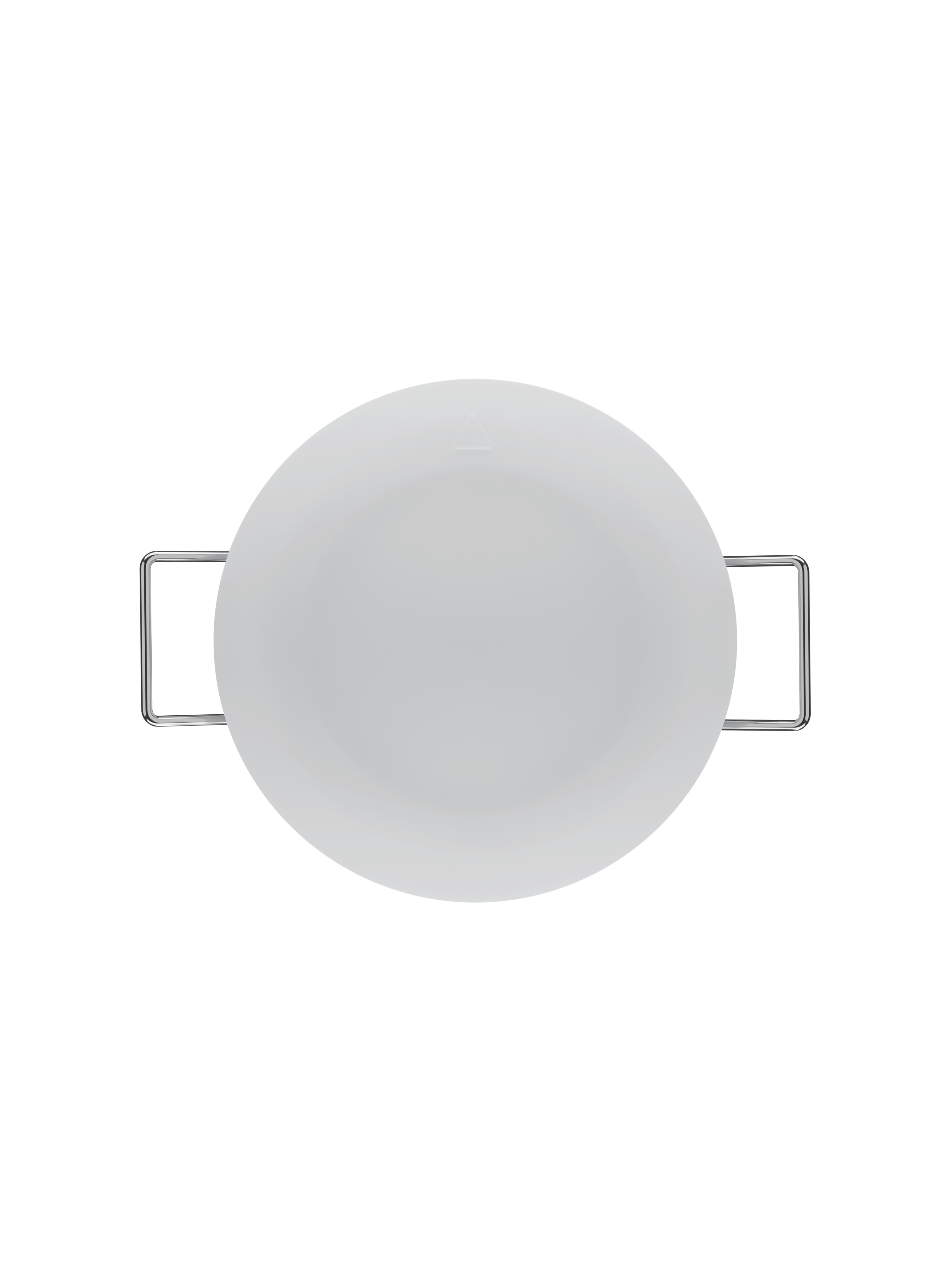

??? ? Ultra-small size The sensor adopts a 35mm ultra-small opening and a 25mm ultra-thin body design. It is smaller than 99% of sensors on the market and is easy to install and hide. | |

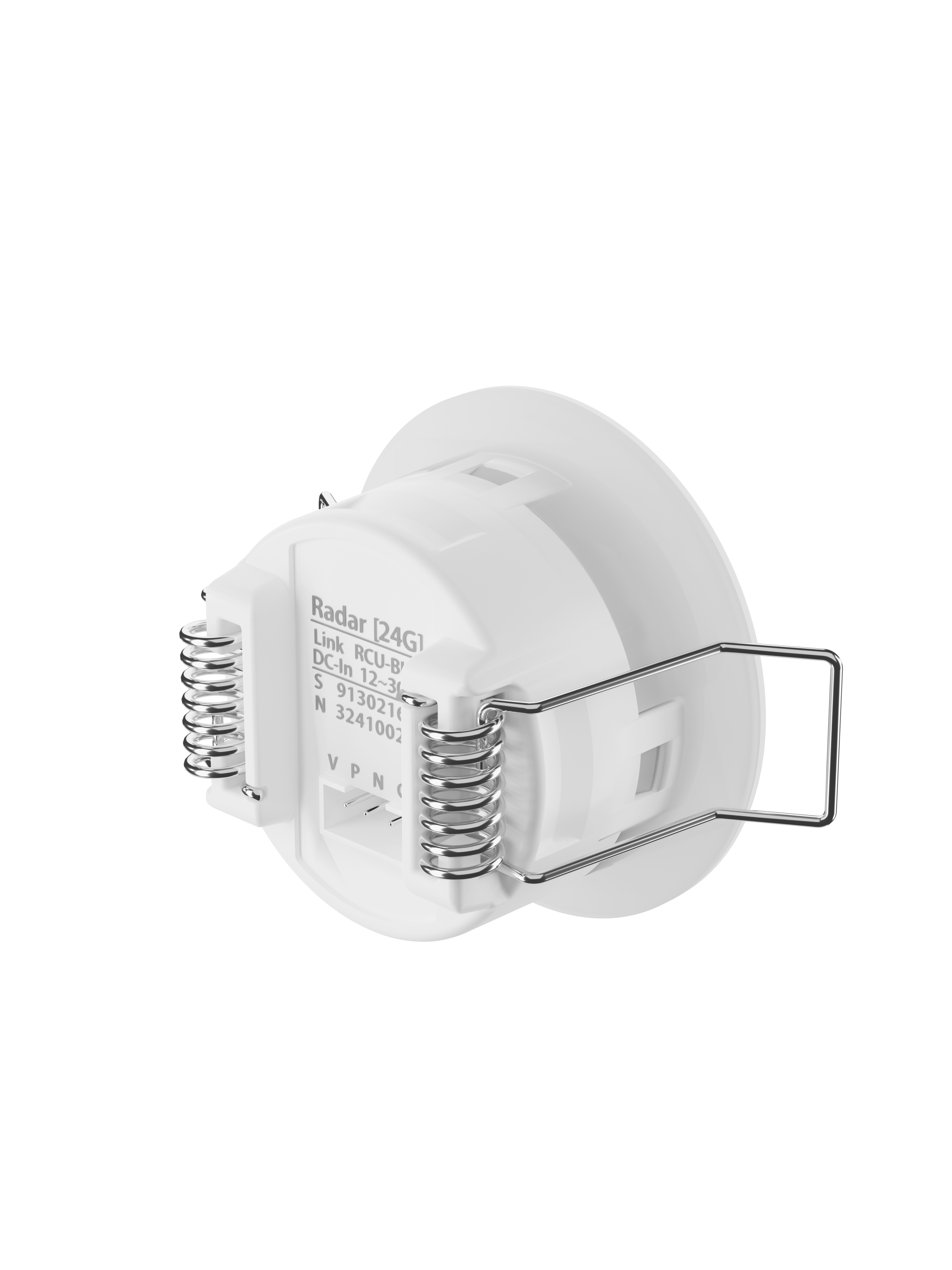

??? ?Multiple installation methods Supports a variety of mounting accessories to adapt the sensor to different installation environments and requirements, including embedded installation, wall mounting, ceiling extension mounting, adjustable angle mounting, surface mounting and other installation methods. | |
??? Rich application scenarios It is suitable for various scenarios such as homes, schools, office buildings, and parking lots, and can achieve precise energy-saving control to turn on lights when someone is there and turn them off when no one is there. It is also suitable for hotel RCU guest control systems to achieve card-free power supply. | |
| Designation | Value |
| Detection Method | 24GHz millimeter wave radar FMCW (Frequency Modulated Continuous Wave) |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 2.5~3.5 meters ①Micro-motion and motion detection diameter ≤ φ8.0 meters ②The maximum diameter of sitting detection is less than or equal to 6.0 meters |
| Detection Distance | 1.5 ~ 5 meters(0~100%) |
| Detection Sensitivity | 0~100% |
| Illumination Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Product Size | φ43mm*35mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 18g |

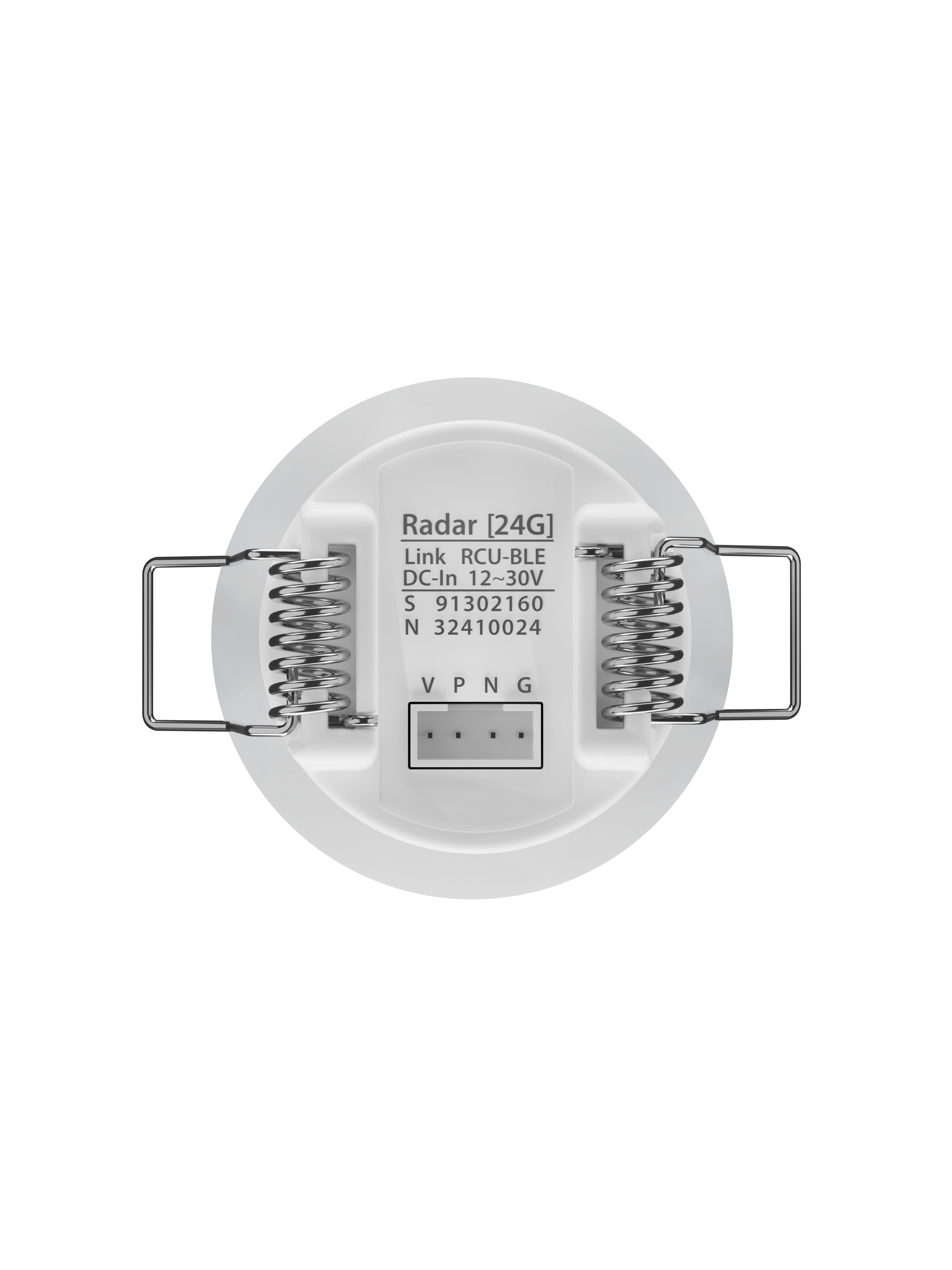

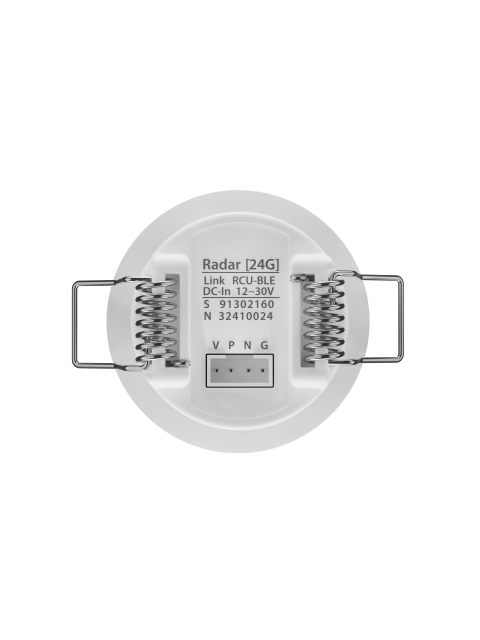

| Power Input | DC12~30V(power consumption＜0.5W) |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| 485 Output Address Range |
01 ~ 99 (decimal) |
| 485 Output Delay Time |
1 ~ 3600 seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
