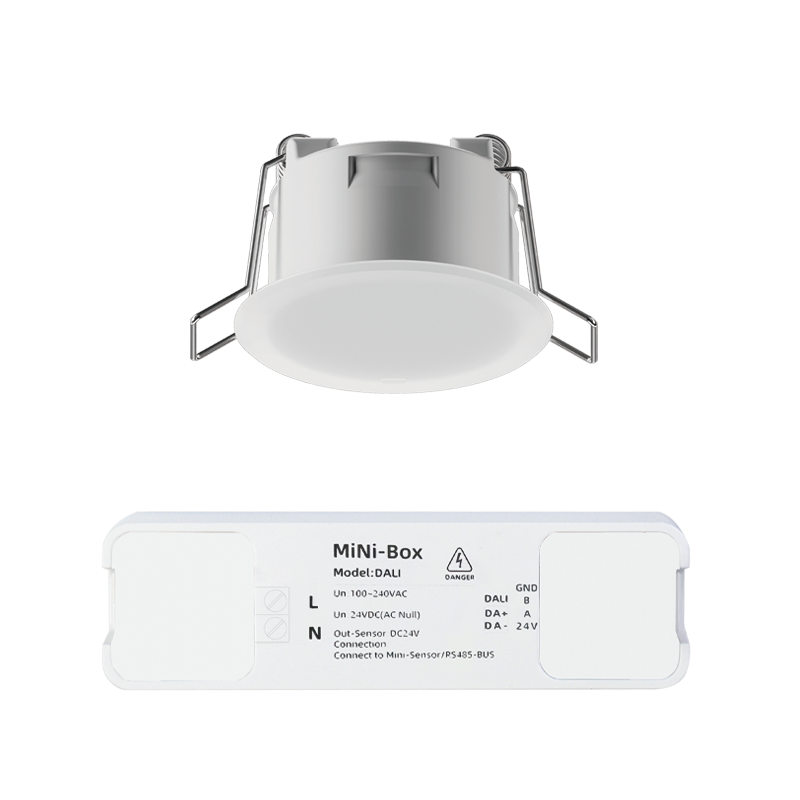

No.Mini-24G-DALI/LTC

24GHz FMCW radar detection
Accurately detect presence and slight motion


This product supports DALI connection, can accurately detect the presence of human body, and provide strong technical support for intelligent lighting control. Built-in 0-32000Lux digital illumination measurement chip, which can also detect ambient light. Automatically adjusts light intensity according to ambient brightness and supports up to 64 independent lighting control channels.

Model/Specifications
CTL-SEN-Mini/2105.F51
Product Number
60.99.2105.F51
type
24GHz
Supported protocols/systems
Salvador Dali
Appearance-Sensor Head
φ43mm*25mm
Appearance power supply
84*21*26 mm
Detection range
φ7.0 meters
powered by
DC12~30V
LTC Power
DC30V or AC100~240V (<0.5W)
  • 60992105F51#Mini 24G Radar Breathing Presence Sensor (DALI/LTC)
  • Description

  • Features

  • Accesseries

















































??? ?Accurate presence detection


Using 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movements of the human body, including subtle movements of the chest and abdomen expanding during breathing.



??? ? Designed specifically for intelligent lighting control scenarios


It can accurately sense human presence and subtle movements, confirm human status by analyzing breathing patterns, and monitor ambient light intensity in real time to automatically adjust lighting brightness. This product supports integration with DALI systems, enabling single control of 64 lighting circuits, providing a flexible lighting management solution.


??? ?Built-in digital illumination measurement chip


The product has a built-in 0-32000Lux digital illuminance measurement chip that can simultaneously detect ambient light. This means that the sensor can not only detect human presence and breathing, but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control.


??? ?FMCW frequency modulated continuous wave radar chip


This technology uses an FMCW frequency-modulated continuous wave radar chip, enabling the sensor to continuously adjust its detection range and sensitivity to adapt to different application scenarios and needs, providing more flexible detection settings.


??? ? Ultra-small size


The sensor adopts a 35mm ultra-small opening and a 25mm ultra-thin body design. It is smaller than 99% of sensors on the market and is easy to install and hide.


??? ?Multiple installation methods


Supports a variety of mounting accessories to adapt the sensor to different installation environments and requirements, including embedded installation, wall mounting, ceiling extension mounting, adjustable angle mounting, surface mounting and other installation methods.


??? Rich application scenarios


It is suitable for various scenarios such as homes, schools, office buildings, parking lots, etc., and can achieve precise energy-saving control of lights on when someone is there and off when no one is there; it is also suitable for hotel RCU guest control systems to achieve card-free power supply.



Designation Value
Detection Mode 24GHz millimeter wave radar
FMCW (Frequency Modulated Continuous Wave)

Installation Height 2.0 ~ 4.0 meters

Detection Angle  360°

Detection Distance 1.5 ~ 5 meters(0~100%)

Detection Range When the installation height is 2.5~3.5 meters
① Micro - motion and motion detection diameter ≤ φ 8.0 meters
② Maximum diameter for peaceful detection ≤ φ 6.0 meters

Detection Sensitivity 0~100%

Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 1%)

Hole Size φ35mm,depth ≥ 100mm

Product Dimensions φ43mm*35mm*25mm

Working Environment Temperature -20 ~ 45 ℃ Humidity < 95%

Power Input AC100~240V

Working Power Supply

21~30V DC


LED Indicator Displays the working status of the sensor, can be set to turn off


Accessories for Installation

Mini-65 Mini-Embedded Parts
Max 65mm Opening
Remedial Ring
Embedded Parts
Frameless Installation
