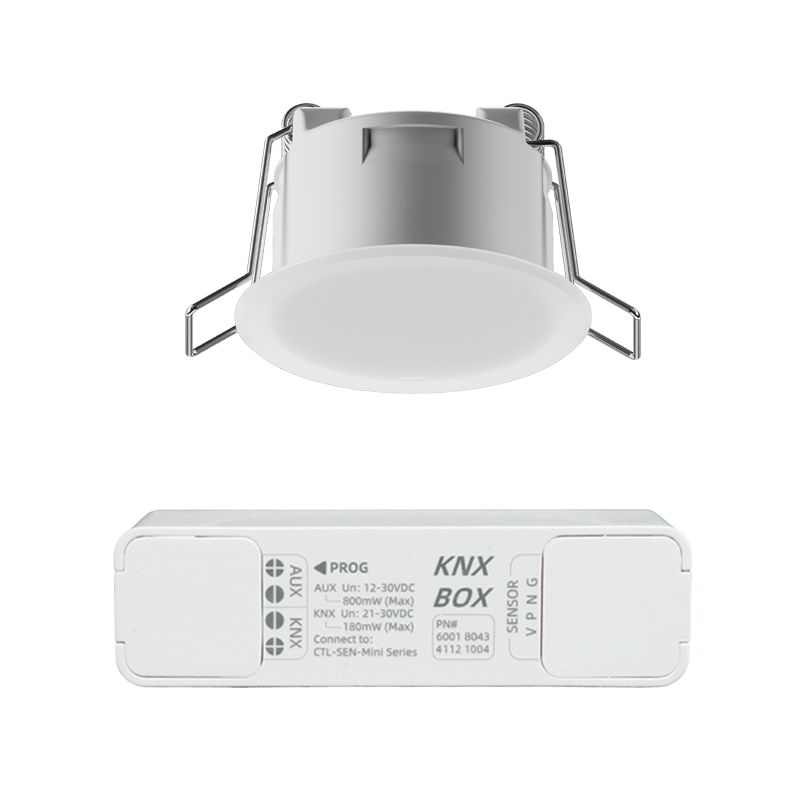

24GHz FMCW radar detection
Accurate detection of presence and minor motion states
It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
? ?? Precise Presence Detection Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing. |    |
? ?? ?Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. | |
? ?? ?FMCW Frequency-Modulated Continuous Wave Radar Chip Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings. | |
? ?? ? Ultra Small Size This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment. | |
? ?? ?Multiple Installation Methods It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods | |
? ?? ?Rich Application Scenarios Suitable for various scenarios such as homes, schools, office buildings, and parking lots, achieving precise energy-saving control with lights turning on when someone is present and off when no one is there; also applicable in hotel RCU guest control systems for card-free power supply. | |
| Designation | Value |
| Detection Mode | 24GHz millimeter wave radar FMCW (Frequency Modulated Continuous Wave) |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Distance | 1.5 ~ 5 meters(0~100%) |
| Detection Range | When the installation height is 2.5～3.5 meters ① Micro - motion and motion detection diameter ≤ φ 8.0 meters ② Maximum diameter for peaceful detection ≤ φ 6.0 meters |
| Detection Sensitivity | 0~100% |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Hole Size | φ35mm,depth ≥ 100mm |
| Product Dimensions | φ43mm*35mm*25mm |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| KNX Input | KNX 12~30V(6mA) |
|
Bus Power Supply |
21~30V DC＜10mA/30V |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
