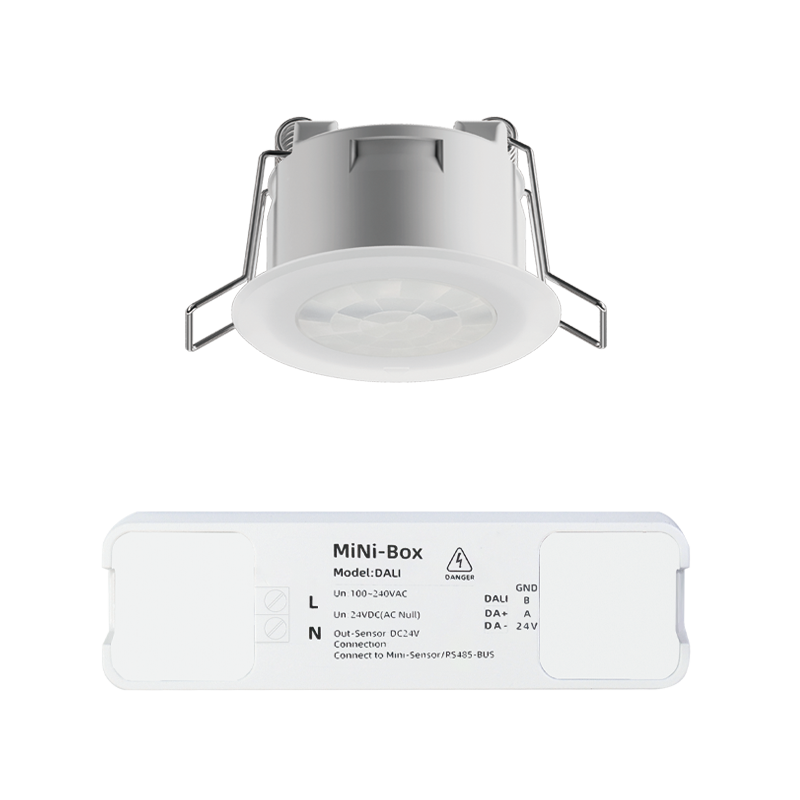

Infrared Motion Sensor
20° narrow-angle detection for movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion,achieving a 20° narrow-angle detection to detect human movement in the form of a sensing surface.Integrated with a single streetlight control line, capable of directly controlling lighting equipment with a maximum load of 300W.also has a buit-in 0-32000Lux digital iluminance measuring chip, capable of simultaneously detecting ambient light.
|
Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting. |
   |
|
20° Narrow Angle Detection Capability The infrared curtain sensor has a narrow angle detection capability of 20°, allowing the sensor to focus on specific areas, reducing false alarms and improving detection accuracy.Applicable to security, entrance, and stair position detection needs. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. |
|
|
Installation Flexibility and Design With its compact and exquisite design, the MiNi PIR sensor can seamlessly integrate into various interior designs without damaging the existing decorative style, providing good aesthetics and practicality. |
|
|
Multiple Installation Accessories It supports various installation accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, celling expansion mounting,adjustable angle mounting, and surface mounting installation methods. |
|
| Designation | Value |
| Detection Mode | Pyroelectric IR |
| Mounting Height | 2 ~ 4m |
| Detection Angle | 20° |
| Detection Range |
When the installation height is 2.5m Detection range is shown in the figure. |
| Illumination Sensing | 0 ~ 32000 Lux |
| Product Size | φ43mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 18g |
| STD Power | DC12~30V(Standby power＜0.5W) |
| LTC Power | DC30V or AC100~240V(＜0.5W) |
| Work Temperature | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Output Delay Time |
1 ~ 3600 Seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
