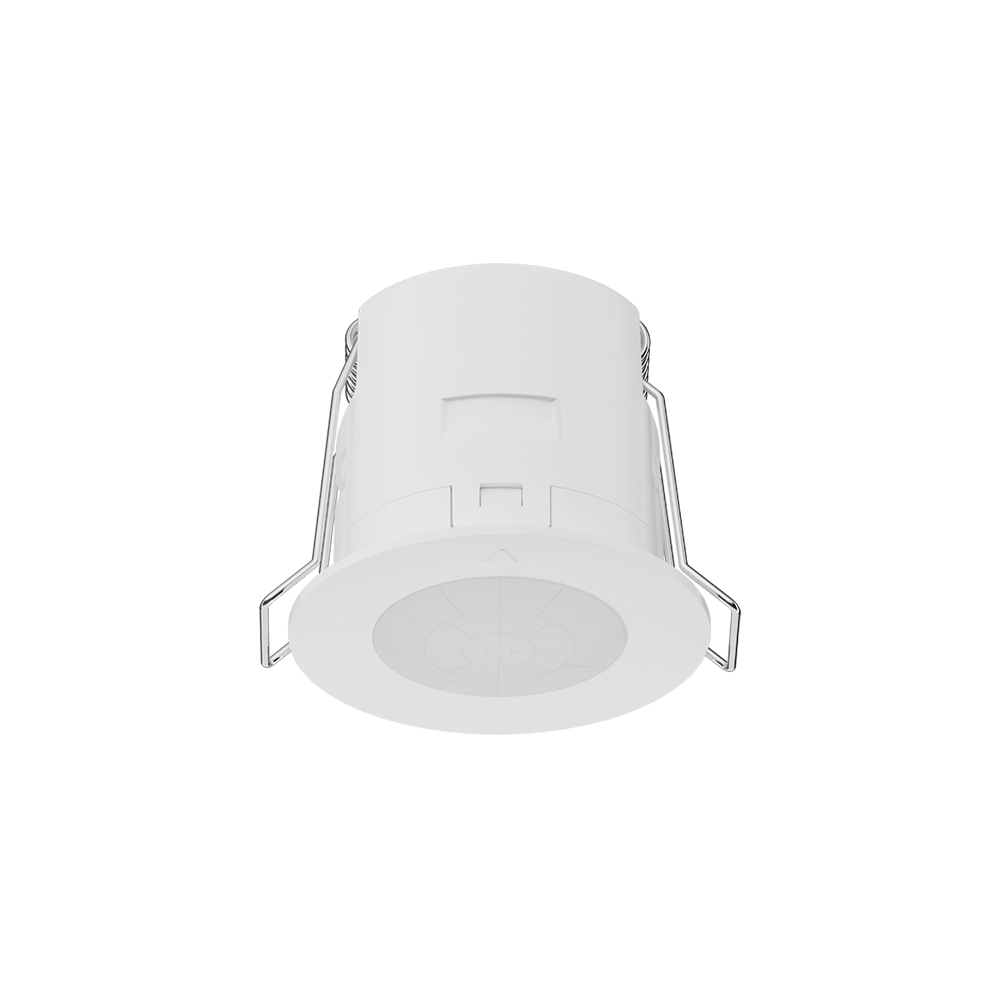

Infrared motion sensor
20° narrow angle detection of motion status
The sensor uses Fresnel spherical lens and pyroelectric infrared sensing technology for dense coverage, detects human radiation movement, and achieves 20° narrow-angle detection. It detects human movement in the form of a sensing surface, providing the KNX system with more accurate human presence perception data. At the same time, it has a built-in 0-32000Lux digital illuminance measurement chip that can simultaneously detect ambient light.
??? ? Motion detection function MiNi PIR infrared pyroelectric sensor has the ability to detect motion and can sense Movement status It can sense moving individuals within the sensing area and is suitable for intelligent control scenarios such as automatic lighting. |    |
??? ? Seamless connection with KNX system By integrating with the KNX protocol, the sensor can be seamlessly integrated into KNX systems, enabling intelligent control of lighting devices, including smart switching, dimming, and the optimal use of natural light. The sensor's flexibility and intelligent control capabilities, combined with KNX protocol integration, make it an ideal choice for intelligent lighting control, bringing efficient and energy-efficient lighting management to a variety of KNX projects. | |
??? ? 20° Narrow-angle detection capability The infrared curtain sensor has a narrow 20° detection capability, which enables the sensor to focus on a specific area, reducing false alarms and improving detection accuracy. Suitable for security, entrance and stair position detection needs. | |
??? ? ?Built-in digital illumination measurement chip This product has a built-in 0-32000Lux digital illuminance measurement chip that can simultaneously detect ambient light. That is, the sensor can monitor the ambient light intensity and realize the monitoring and control of light intensity to meet different lighting needs. | |
??? ? Installation flexibility and design The MiNi PIR sensor is compact and exquisite in design, which can be seamlessly integrated into various interior designs without destroying the existing decorative style. It has both good aesthetics and practicality. | |
??? ? Various mounting accessories It supports a variety of mounting accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded mounting, wall mounting, ceiling extension mounting, adjustable angle mounting and surface mounting. | |
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 20° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Hole Size | φ35mm, depth ≥ 100mm |
| Product Dimensions | φ43mm*35mm*35mm |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
|
Working Power Supply |
21~30V DC |
|
Bus Input |
KNX(21~30V) |
|
Bus Current |
10mA |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
