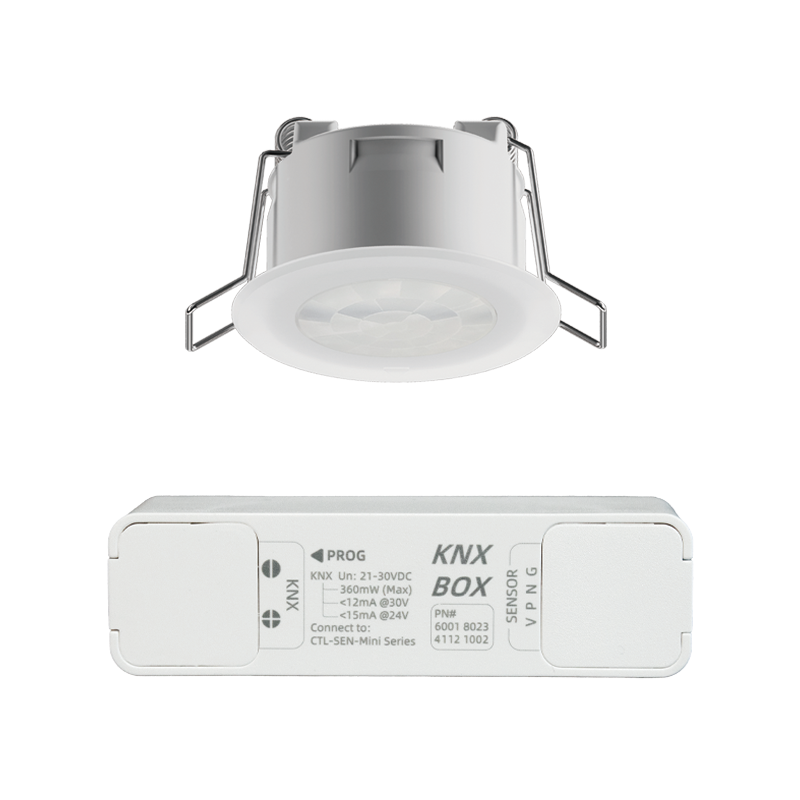

Infrared motion sensor 20° narrow angle motion detection
It uses Fresnel spherical lenses and pyroelectric infrared sensing technology to achieve dense coverage, detecting human movement with a sensing surface, and achieving a 20° narrow-angle detection. It also has a built-in 0-32,000 lux digital illumination measurement chip that can simultaneously detect ambient light.
20° narrow angle detection capability The infrared curtain sensor features a narrow 20° angle of detection, focusing on specific areas to reduce false alarms and improve detection accuracy. It's ideal for security, entrances, and stairway location detection. Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting. |    |
20° Narrow Angle Detection Capability The infrared curtain sensor has a narrow angle detection capability of 20°, allowing the sensor to focus on specific areas, reducing false alarms and improving detection accuracy. Applicable to security, entrance, and stair position detection needs. | |
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. | |
Installation Flexibility and Design With its compact and exquisite design, the MiNi PIR sensor can seamlessly integrate into various interior designs without damaging the existing decorative style, providing good aesthetics and practicality. | |
Multiple Installation Accessories It supports various installation accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, celling expansion mounting, adjustable angle mounting, and surface mounting installation methods. | |
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 20° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Hole Size | φ35mm Depth ≥10cm |
| Product Dimensions | φ43mm*35mm*25mm |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| KNX Input | KNX(21~30V) |
| Bus Current | 6mA |
|
Bus Power Supply |
21~30V DC＜10mA/30V |
|
Bus Power Consumption |
< 180mW |
| LED Indicator | ① Receive the configuration command and flash for 3 seconds ② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination ③ Can be set to off mode (does not light up when detecting someone) |
