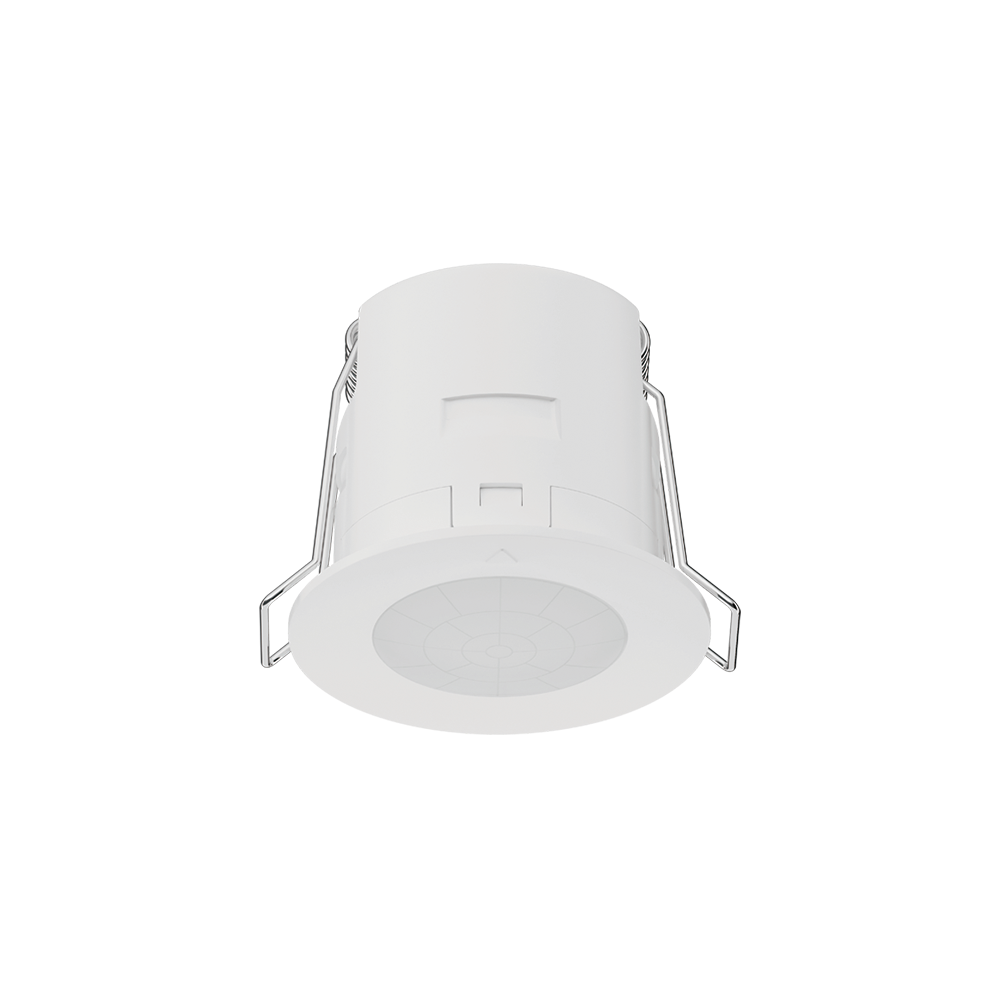

Infrared Motion Sensor
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
|
Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting. |
   |
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. |
|
|
Installation Flexibility and Design With its compact and exquisite design, the MiNi PIR sensor can seamlessly integrate into various interior designs without damaging the existing decorative style, providing good aesthetics and practicality. |
|
|
Multiple Installation Accessories It supports various installation accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, celling expansion mounting,adjustable angle mounting, and surface mounting installation methods. |
|
|
Efficient Energy Saving and Safety Reliability With its efficient energy-saving and safety-reliable features, the MiNi PIR sensor has been widely used and praised in residential, office buildings, schools, factory,and community projects. |
|
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Install Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Product Weight | 26g |
| Delay Time | 1 ~ 3600 seconds |
| Hole Size | φ35mm，depth ≥ 100mm |
| Product Dimensions | φ43mm*35mm*35mm |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
Working Power Supply | 21~30V DC |
Bus Input | KNX(21~30V) |
Bus Current | 10mA |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
