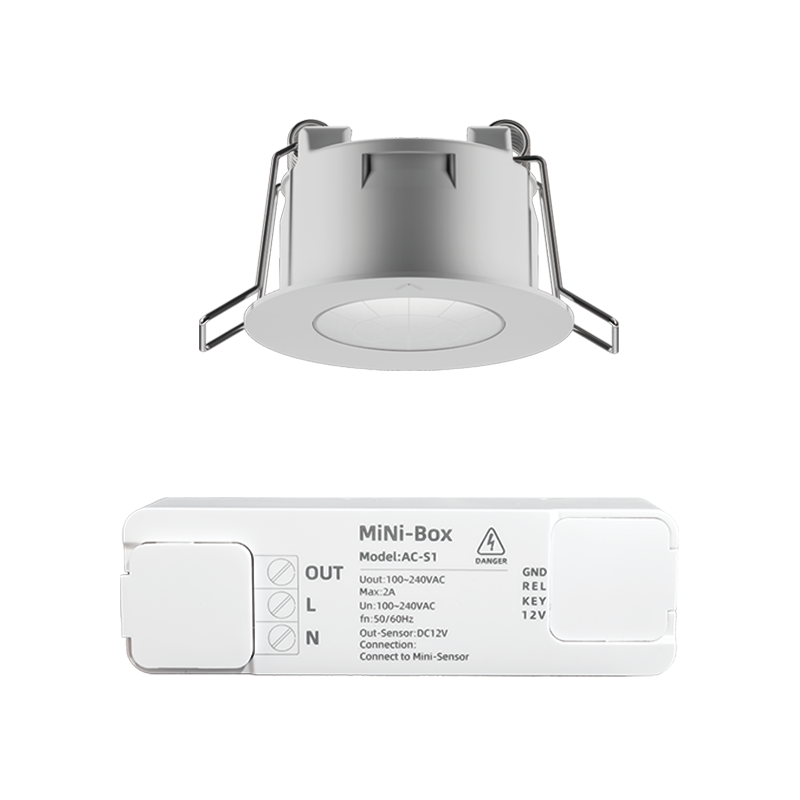

Infrared motion sensor
Detecting human motion status
This sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing technology to achieve dense coverage and detect human radiant motion. It integrates a single streetlight control line and can directly control lighting equipment with a maximum load of 300W. A built-in 0-32,000 Lux digital illuminance counter chip also detects ambient light.
??? ? Motion detection function MiNi PIR infrared pyroelectric sensor has the ability to detect motion and can sense Movement status It can sense moving individuals within the sensing area and is suitable for intelligent control scenarios such as automatic lighting. |    |
??? ?Built-in digital illumination measurement chip This product has a built-in 0-32000Lux digital illuminance measurement chip that can detect ambient light at the same time, which means the sensor can ?Monitor the ambient light intensity to monitor and control the light intensity to meet different lighting needs. | |
??? ? Installation flexibility and design The MiNi PIR sensor is compact and exquisite in design, which can be seamlessly integrated into various interior designs without destroying the existing decorative style. It has both good aesthetics and practicality. | |
??? ? Various mounting accessories It supports a variety of mounting accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded mounting, wall mounting, ceiling extension mounting, adjustable angle mounting and surface mounting. | |
??? ? High efficiency, energy saving, safe and reliable MiNi PIR sensors have been widely used and well received in residential buildings, office buildings, schools, factories and community projects due to their high efficiency, energy saving, safety and reliability. | |
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illumination Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Product Size | φ43mm*35mm*25mm |
| Hole Size | φ35mm Depth ≥10cm |
| Product Weight | 18g |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Power Input | 100~240VAC(power consumption＜0.5W) |
| Relay load | 100~240VAC,≤2A |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
