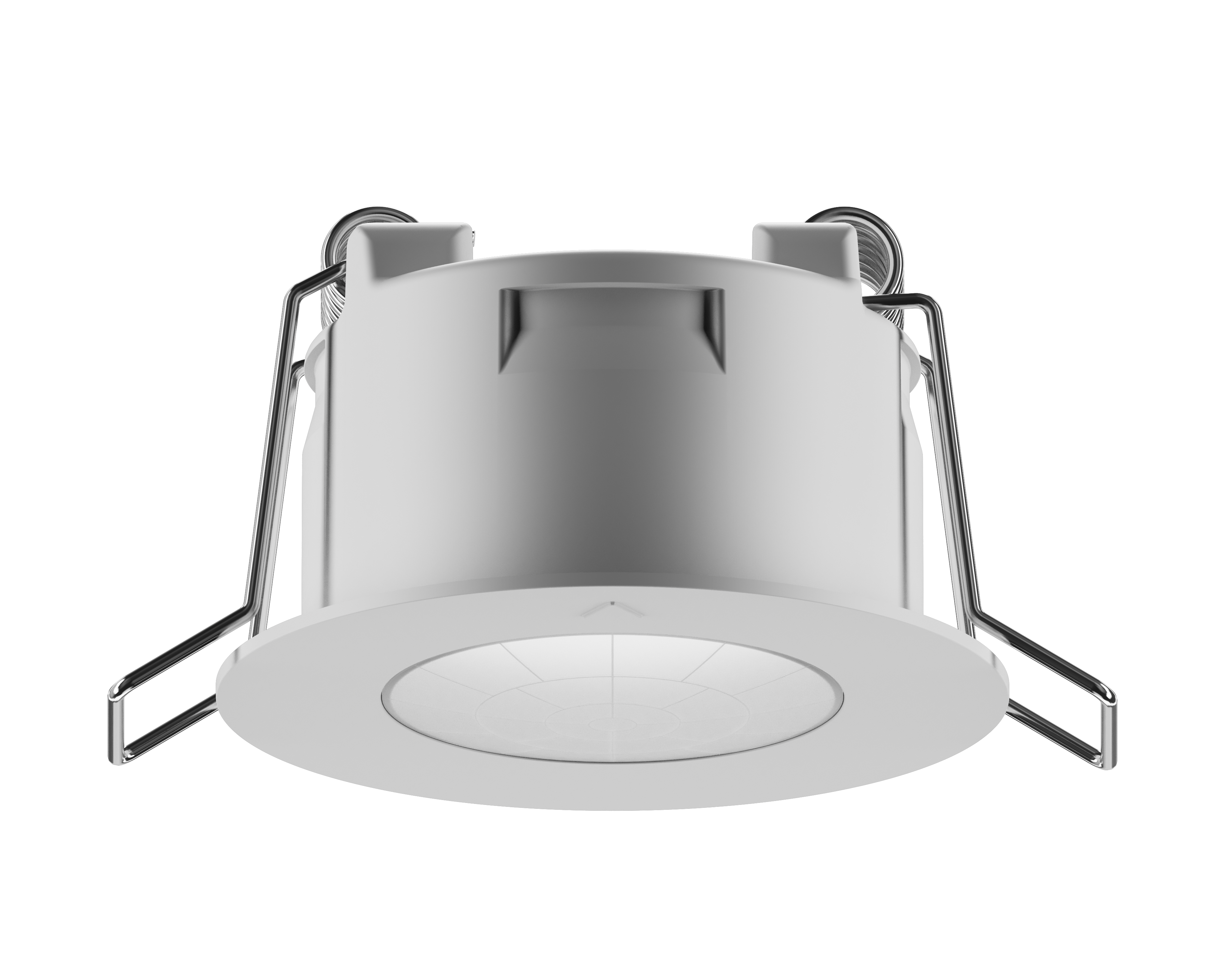

Infrared motion sensor
Detecting human motion status
The sensor uses Fresnel spherical lens and pyroelectric infrared sensing technology to achieve dense coverage and detect human radiation movement. It has a built-in 0-32000 Lux digital illuminance counting chip and can also detect ambient light.
??? ? Motion detection function MiNi PIR infrared pyroelectric sensor has the ability to detect motion and can sense Movement status It can sense individuals moving within the sensing area and is suitable for intelligent control scenarios such as automatic lighting. |    |
??? ?Built-in digital illumination measurement chip This product has a built-in 0-32000Lux digital illuminance measurement chip that can detect ambient light at the same time, which means the sensor can ?Monitor the ambient light intensity to monitor and control the light intensity to meet different lighting needs. | |
??? ? Installation flexibility and design The MiNi PIR sensor is compact and exquisite in design, which can be seamlessly integrated into various interior designs without destroying the existing decorative style. It has both good aesthetics and practicality. | |
??? ? Various mounting accessories It supports a variety of mounting accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded mounting, wall mounting, ceiling extension mounting, adjustable angle mounting and surface mounting. | |
??? ? High efficiency, energy saving, safe and reliable MiNi PIR sensors have been widely used and well received in residential buildings, office buildings, schools, factories and community projects due to their high efficiency, energy saving, safety and reliability. | |
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Install Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Hole Size | φ35mm |
| Product Weight | 18g |
| Power Input | DC12~ 30V (power consumption < 0.5W) |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Address Range | 01 ~ 99 (decimal) |
| Interface | RS485 |
| LED Indicator | ① Receive the configuration command and flash for 3 seconds ② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination ③ Can be set to off mode (does not light up when detecting someone) |
