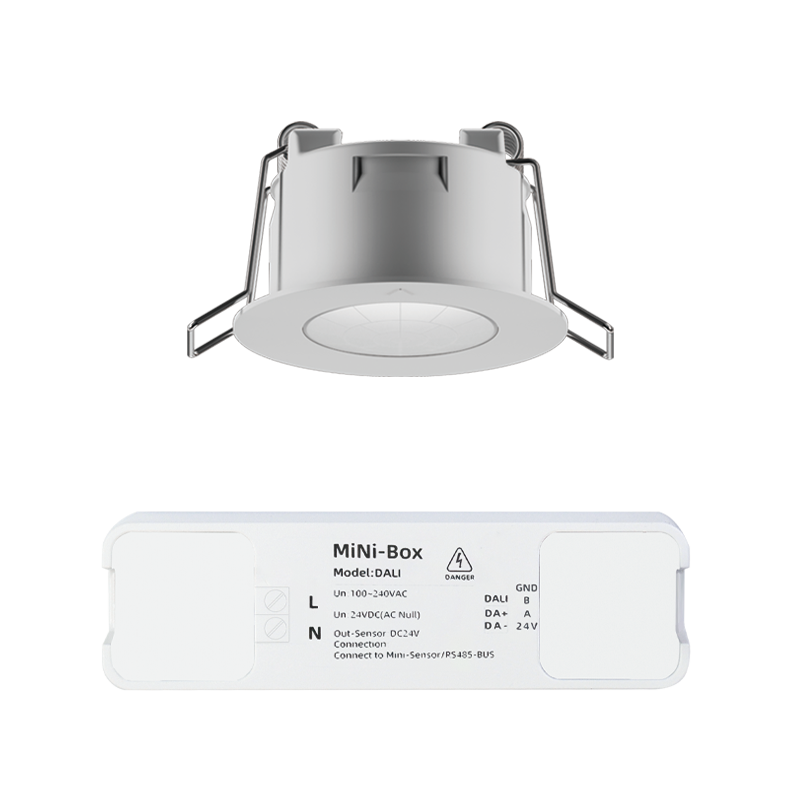

Infrared Motion Sensor
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion.Integrated with a single streetlight control line, capable of directly controlling lighting equipment with a maximum load of 300W. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
|
Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting. |
   |
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. |
|
|
Installation Flexibility and Design With its compact and exquisite design, the MiNi PIR sensor can seamlessly integrate into various interior designs without damaging the existing decorative style, providing good aesthetics and practicality. |
|
|
Multiple Installation Accessories It supports various installation accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, celling expansion mounting,adjustable angle mounting, and surface mounting installation methods. |
|
|
Efficient Energy Saving and Safety Reliability With its efficient energy-saving and safety-reliable features, the MiNi PIR sensor has been widely used and praised in residential, office buildings, schools, factory,and community projects. |
|
| Designation | Value |
| Detection Mode | Pyroelectric IR |
| Mounting Height | 2 ~ 4m |
| Detection Angle | 360° |
| Detection Range |
When the installation height is 4.0m Detection diameter≤8.0m |
| Illumination Sensing | 0 ~ 32000 Lux |
| Product Size | φ43mm*25mm |
| Hole Size | φ35mm |
| Product Weight | 18g |
| STD Power | DC12~30V(Standby power＜0.5W) |
| LTC Power | DC30V or AC100~240V(＜0.5W) |
| Work Temperature | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Output Delay Time |
1 ~ 3600 Seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
