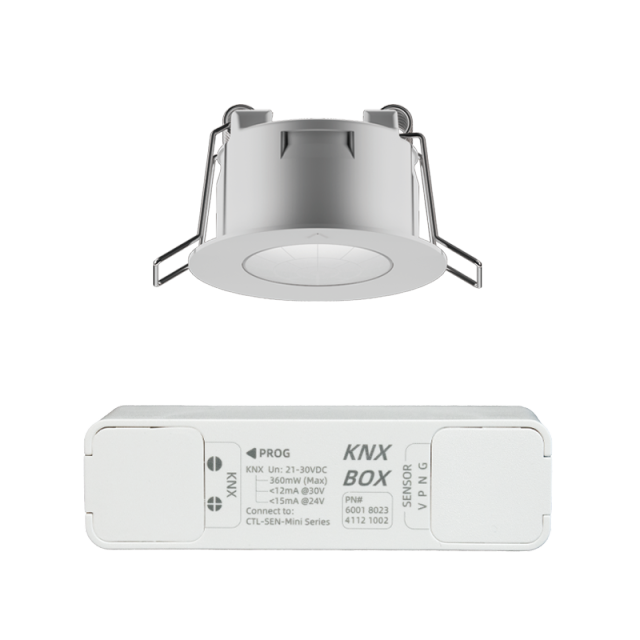

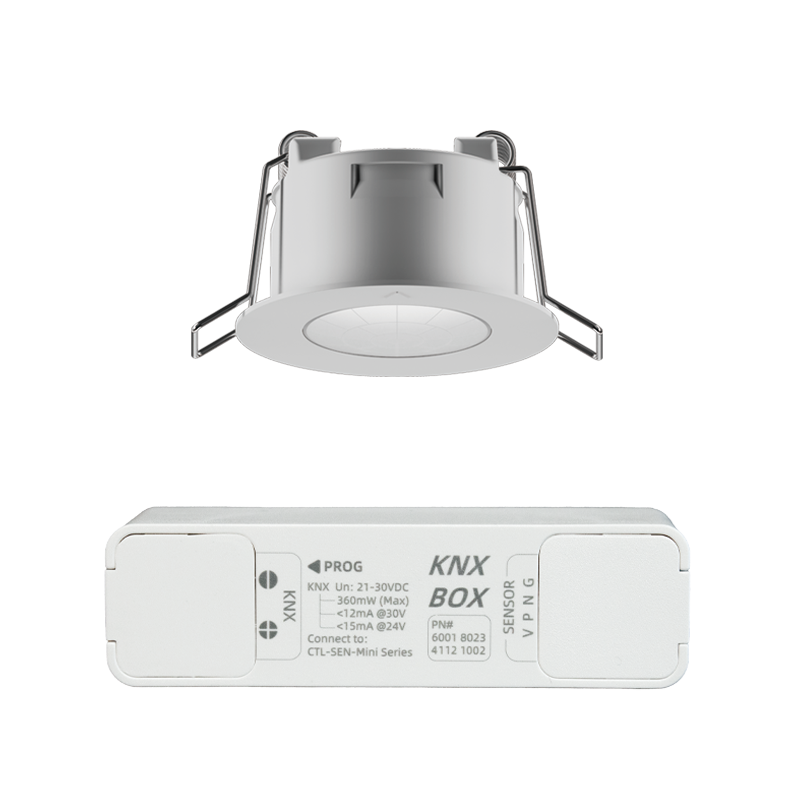

Infrared motion sensor
Detecting human motion status
The sensor uses Fresnel spherical light source and pyroelectric infrared sensing technology to achieve dense coverage to detect human radiation movement. The built-in 0-32000 lux digital illumination counting chip can simultaneously detect ambient light.
|
Motion detection function The MiNi PIR pyroelectric infrared sensor has motion detection capabilities and can sense the motion status of moving people in the sensing area. It is suitable for intelligent control scenarios such as automatic lighting. Built-in digital illuminance measurement chip This product has a built-in 0-32000 lux digital illuminance measurement chip that can simultaneously detect ambient light, enabling light intensity monitoring and adjustment to suit different lighting needs. Flexible installation and design The MiNi PIR sensor has a sophisticated design that meets the needs of Scottish indoor environments, maintaining both aesthetics and practicality while maintaining the decorative style. |
   |
|
Multiple mounting accessories It supports multiple installation methods such as embedded, wall-mounted, ceiling extension installation, angle-adjustable and surface installation to meet different installation environment requirements. High efficiency, energy saving, safe and reliable With its high efficiency, energy saving, safety and reliability, the sensor has been widely evaluated in residences, office buildings, schools, factories and community projects and received positive reviews. |
|
|
Installation flexibility and design The MiNi PIR sensor is compact and exquisite in design, which can be seamlessly integrated into various interior designs without destroying the existing decorative style. It has both good aesthetics and practicality. |
|
|
Various mounting accessories It supports a variety of mounting accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded mounting, wall mounting, ceiling extension mounting, adjustable angle mounting and surface mounting. |
|
|
High efficiency, energy saving, safe and reliable MiNi PIR sensors have been widely used and well received in residential buildings, office buildings, schools, factories and community projects due to their high efficiency, energy saving, safety and reliability. |
|
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Install Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Hole Size | φ35mm,depth≥100mm |
| Product Weight | 18g |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| KNX Input | KNX（21~30V) |
| Bus Current | 6mA |
| Bus Power Supply | 21~30V DC＜10mA/30V |
| Bus Power Consumption | ＜180mW |
| LED Indicator | ① Receive the configuration command and flash for 3 seconds ② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination ③ Can be set to off mode (does not light up when detecting someone) |
