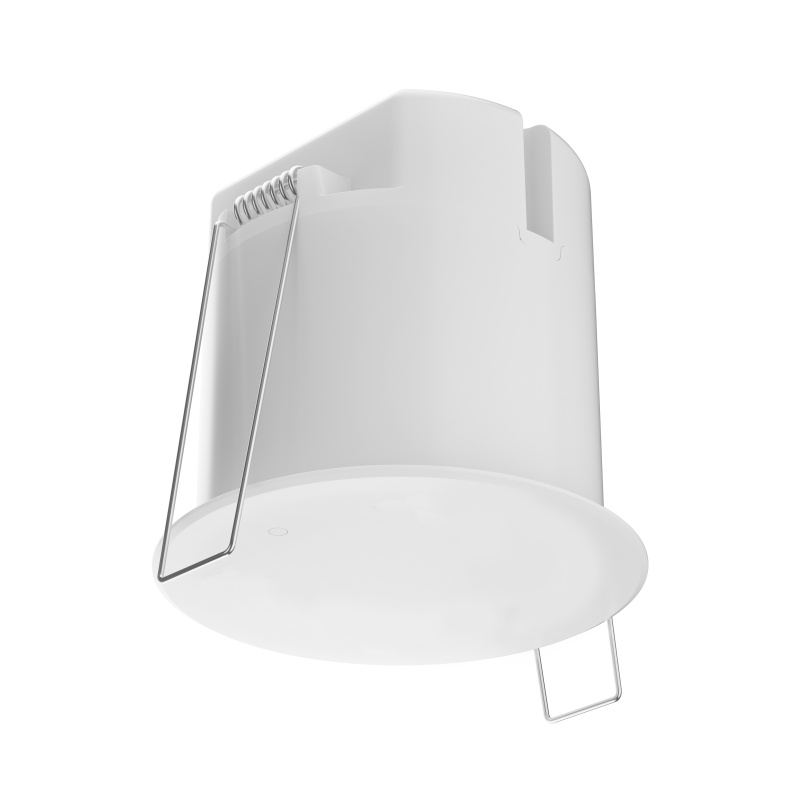

??? ? High precision at 60 GHz The sensor uses 60GHz FMCW (frequency modulated continuous wave) millimeter wave radar detection technology. Compared with 24GHz radar, the higher frequency of 60GHz provides higher accuracy and resolution, and is suitable for high-precision application scenarios such as human posture analysis and respiratory monitoring. |    |
??? ? Integrated multifunctional product The built-in algorithm processor eliminates the need for cloud processing and protects user privacy. It can detect human motion status, posture, direction, and location information in multiple dimensions, and realize functions such as on-site monitoring, fall monitoring, bed leaving monitoring, home leaving monitoring, and night monitoring, providing all-round safety protection for the elderly. | |
??? ? Wide range of application capabilities The product uses no cameras for surveillance, requires no wearable devices, and has a built-in algorithm processor, eliminating the need for cloud-based processing, effectively protecting user privacy. This makes it suitable not only for traditional locations like bedrooms, offices, and public corridors, but also for bathrooms, restrooms, and nursing homes, where privacy is paramount. | |
??? ? Rich application scenarios It supports ceiling installation at a height range of 2.5m-3.5m, with a detection range of 4m x 3m, providing 24-hour uninterrupted protection. It is suitable for a variety of home environments, including single-story, duplex, and villas, as well as hospitals, nursing homes, rehabilitation institutions, and community residences. It accurately detects falls, prolonged stays, and abnormal situations, and automatically issues alarms. | |
| Designation | Value |
| Detection Method | 60GHz millimeter wave radar FMCW（Frequency Modulated Continuous Wave） |
| Installation Height | 2.0 ~ 3.2 meters |
| Detection Angle | 360° |
| Detection Range | When installed at 2.5 ~ 3.2 m Detection range: 5.0 * 6.0 m |
| Detection Sensitivity | 0~100% |
| Illumination Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Product Dimensions | φ65mm*60mm |
| Hole Size | φ55mm |
| Product Weight | 62g |
| Power Input | DC12~30V (power consumption＜3W) |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Address Range | 01 ~ 99 (decimal) |
| Delay Time | 1 ~ 3600 seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
