High Precision at 60GHz This sensor adopts 60GHz FMCW (Frequency-Modulated Continuous Wave) millimeter-wave radar detection technology. Compared to 24GHz radar, the higher frequency of 60GHz provides greater accuracy and resolution, making it suitable for high-precision application scenarios such as human posture analysis and respiration monitoring. |
   |
|
All-in-One Multifunctional Product With a built-in algorithm processor, it does not require cloud processing, thus protecting user privacy. It enables multidimensional detection of human movement status, posture, direction, and location information, facilitating presence monitoring, fall detection, bed exit monitoring, home exit monitoring, and nocturnal monitoring, providing comprehensive safety protection for the elderly. |
|
|
Broad Application Capabilities Non-camera-based monitoring, no wearable devices required, built-in algorithm processor, and no cloud processing protect user privacy. This allows the product to be used not only in conventional home bedrooms, office spaces, and public corridors but also in bathrooms, toilets, and elderly care homes where privacy protection is emphasized. |
|
|

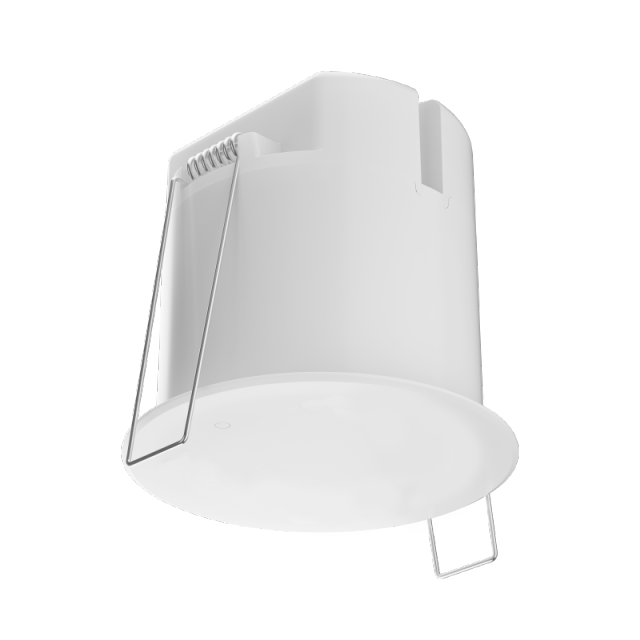

Rich Application Scenarios Supports ceiling installation, with a height range of 2.5m to 3.5m and a detection range of 4m×3m, providing 24-hour continuous protection. It is suitable for various home environments such as single-story, duplex, and villas, as well as hospitals, nursing homes, rehabilitation institutions, and community residences, offering precise monitoring of falls, prolonged stays, abnormal situations, and automatic alarms. |
|
| Designation | Value |
| Detection Mode | 60GHz millimeter wave radar FMCW（Frequency Modulated Continuous Wave） |
| Installation Height | 2.0 ~ 3.2 meters |
| Detection Angle | 360° |
| Detection Range | When installed at 2.5 ~ 3.2 m: Detection range: 5.0 * 6.0 m |
| Detection Sensitivity | 0~100% |
| Illumination Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Product Dimensions | φ65mm*60mm |
| Hole Size | φ55mm |
| Product Weight | 62g |
| Power Input | DC12~30V (power consumption＜3W) |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Delay Time | 1 ~ 3600 seconds |
| Interface | Dry Contact |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
