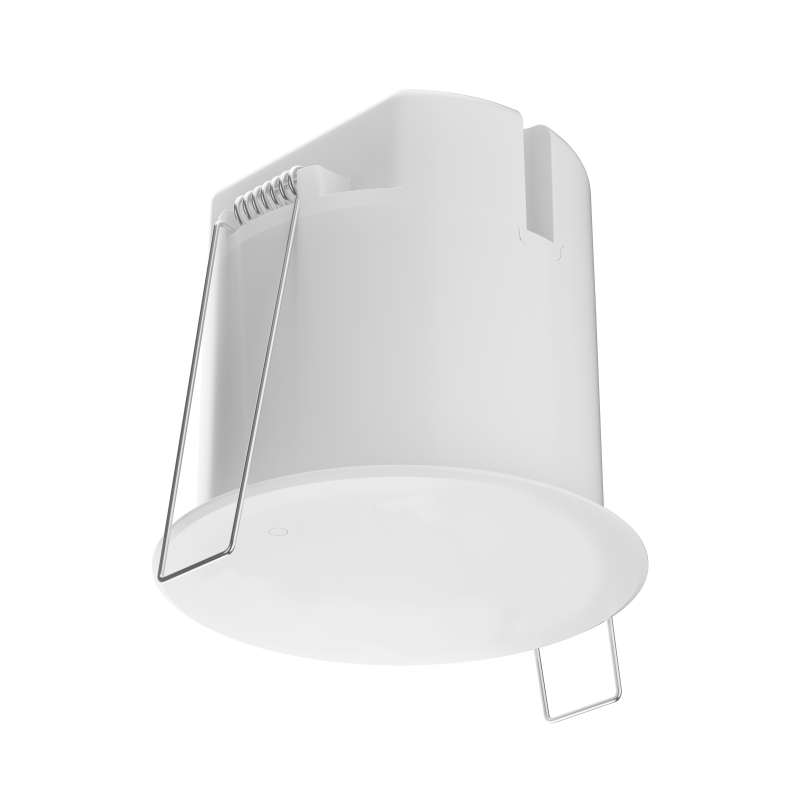

24GHz FMCW radar detection(Max)
It is a millimeter-wave radar sensor capable of detecting human presence. Equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol algorithm to confirm human presence by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
|
Precise Presence Detection Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the stationary and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing. |
   |
|
Enhanced mmWave Radar |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. |
|
|
FMCW Frequency-Modulated Continuous Wave Radar Chip Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings. |
|
| Designation | Value |
| Detection Method | 24GHz millimeter wave radar FMCW (Frequency Modulated Continuous Wave) |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 2.5~3.5 meters Mobile and stationary detection diameter ≤φ10.0m |
| Detection Distance | 1.5 ~ 8 meters(0~100%) |
| Detection Sensitivity | 0~100% |
| Illuminance Sensing | 0 ~ 32000 Lux(Accuracy ± 1%） |
| Product Dimensions | φ65mm*60mm |
| Hole Size | φ55mm |
| Product Weight | 62g |
| Power Input | DC12~30V |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Address Range | 01 ~ 99 (decimal) |
| Delay Time | 1 ~ 3600 seconds |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
