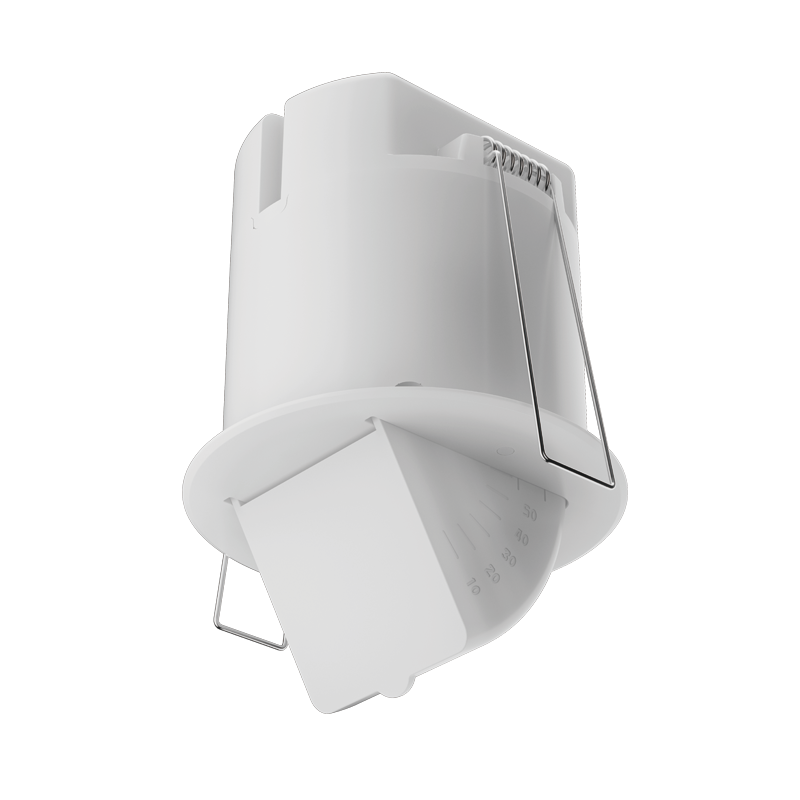

24GHz FMCW radar detection
The detection direction can be adjusted from 0~60°
It is a millimeter-wave radar sensor capable of detecting human presence. The detection direction can be adjusted from 0 to 60 degrees.Equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol algorithm to confirm human presence by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
|
Precise Presence Detection Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the stationary and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing. |
   |
|
Freely Adjustable Detection Angle |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. |
|
|
FMCW Frequency-Modulated Continuous Wave Radar Chip Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings. |
|
| 规格 | 数值 |
| 探测模式 |
24GHz毫米波雷达
FMCW（调频连续波）
|
| 安装高度 |
2.0~4.0米
|
| 探测角度 | 360° |
| 探测范围 | 安装高度在2.5～3.5米时，
当角度为0°，探测范围为φ2m，
当角度为30°，探测范围为5*3.6m
当角度为60°，探测范围为8*8m
|
| 探测灵敏度 | 0~100% |
| 照度传感 | 0～32000 Lux（精度±4%） |
| 产品尺寸 |
φ65mm*60mm
|
| 开孔尺寸 |
φ55mm
|
| 产品重量 | 65g |
|
电源输入
|
DC12~30V
|
| 工作环境 | 温度-20～45℃ 湿度<95% |
| 延迟时间 | 1～3600秒 |
| LED 指示灯 | ①收到配置命令快闪3秒 ②检测有人时常亮，指示灯亮度随环境照度自动调光 ③可设置关闭模式(检测有人时也不亮) |
