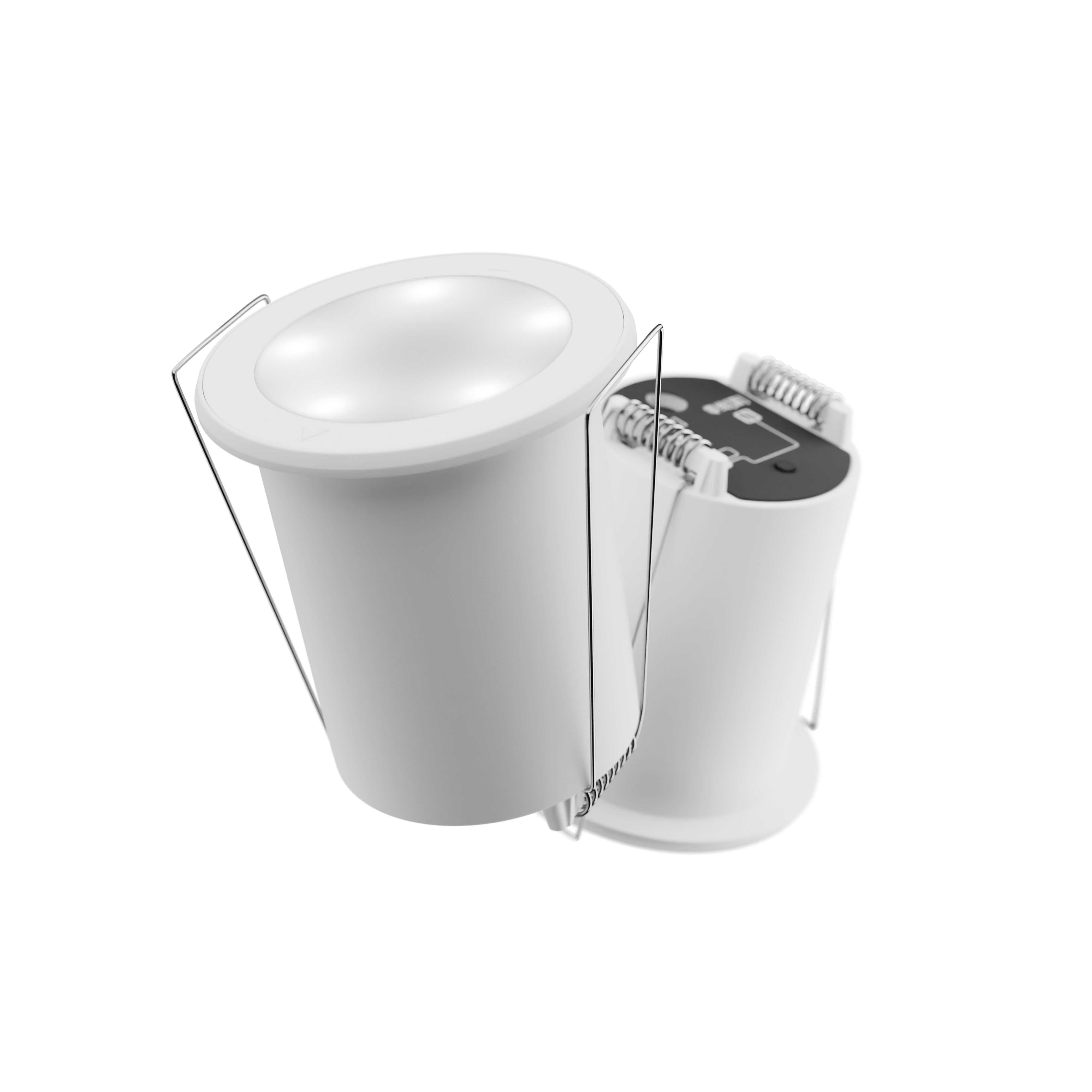

24GHz FMCW radar detection
Accurate detection of presence and minor motion states
Equipped with 24GHz FMCW radar detection technology, it can accurately capture human presence and subtle motion states, providing intelligent lighting control solutions for Tuya system projects.Integrated with a single streetlight control line, capable of directly controlling lighting equipment with a maximum load of 300W.It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
|
Precise Presence Detection Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the stationary and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing. |
   |
|
Directly Switch a Lighting Circuit This sensor can directly switch a lighting circuit with a maximum load of 300W. This means that regardless of the smart scenario it is used in, the sensor can switch the lighting based on detected human presence and motion status, achieving energy savings and automated management. |
|
|
Supports the Tuya System This sensor can seamlessly integrate into the Tuya system, enabling intelligent control of lighting devices, including smart switches, dimming, and making full use of natural light. The openness, modularity, and versatility of the Tuya system allow this sensor to perform excellently in residential, commercial, and industrial applications. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control. |
|
|
FMCW Frequency-Modulated Continuous Wave Radar Chip Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings. |
|
|
Rich Application Scenarios Suitable for various scenarios such as homes, schools, office buildings, and parking lots, achieving precise energy-saving control with lights turning on when someone is present and off when no one is there; also applicable in hotel RCU guest control systems for card-free power supply. |
|
| Designation | Value |
| Detection Method | 24GHz millimeter wave radar FMCW (Frequency Modulated Continuous Wave) |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 2.5~ 3.5 meters ① Micro - motion and motion detection diameter ≤ φ 7.0 meters ② Maximum diameter for peaceful detection ≤ φ 4.0 meters |
| Detection Distance | 1.5 ~ 4.5 meters(0~100%) |
| Detection Sensitivity | 0~100% |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Hole Size | φ42mm |
| Product Dimensions | φ50mm*42mm*58mm |
| Product Weight | 65g |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Power Input | 100~240VAC |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
