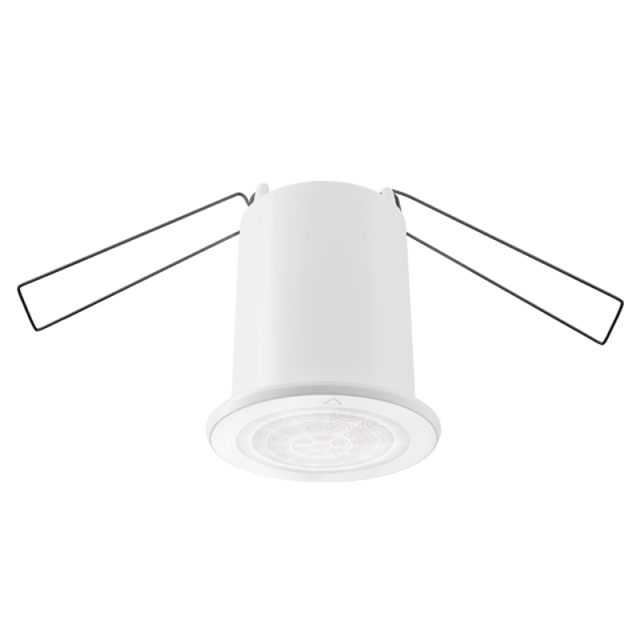

Infrared Motion Sensor
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. By integrating with the Tuya protocol, this sensor can seamlessly integrate into the Tuya system.It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
|
Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting. |
   |
|
20° Narrow Angle Detection Capability The infrared curtain sensor has a narrow angle detection capability of 20°, allowing the sensor to focus on specific areas, reducing false alarms and improving detection accuracy.Applicable to security, entrance, and stair position detection needs. |
|
|
Supports the Tuya System This sensor can seamlessly integrate into the Tuya system, enabling intelligent control of lighting devices, including smart switches, dimming, and making full use of natural light. The openness, modularity, and versatility of the Tuya system allow this sensor to perform excellently in residential, commercial, and industrial applications. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. |
|
|
Installation Flexibility and Design With its compact and exquisite design, the MiNi PIR sensor can seamlessly integrate into various interior designs without damaging the existing decorative style, providing good aesthetics and practicality. |
|
|
Multiple Installation Accessories It supports various installation accessories, allowing the MiNi PIR sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, celling expansion mounting,adjustable angle mounting, and surface mounting installation methods. |
|
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Installation Height | 2.0 ~ 4.0 meters |
| Detection Angle | 20° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ 6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Product Dimensions | φ50mm*42mm*58mm |
| Hole Size | φ42mm |
| Product Weight | 53g |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Power Input | 100~240VAC(power consumption＜0.5W) |
| Communication | Tuya-Zigbee |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
