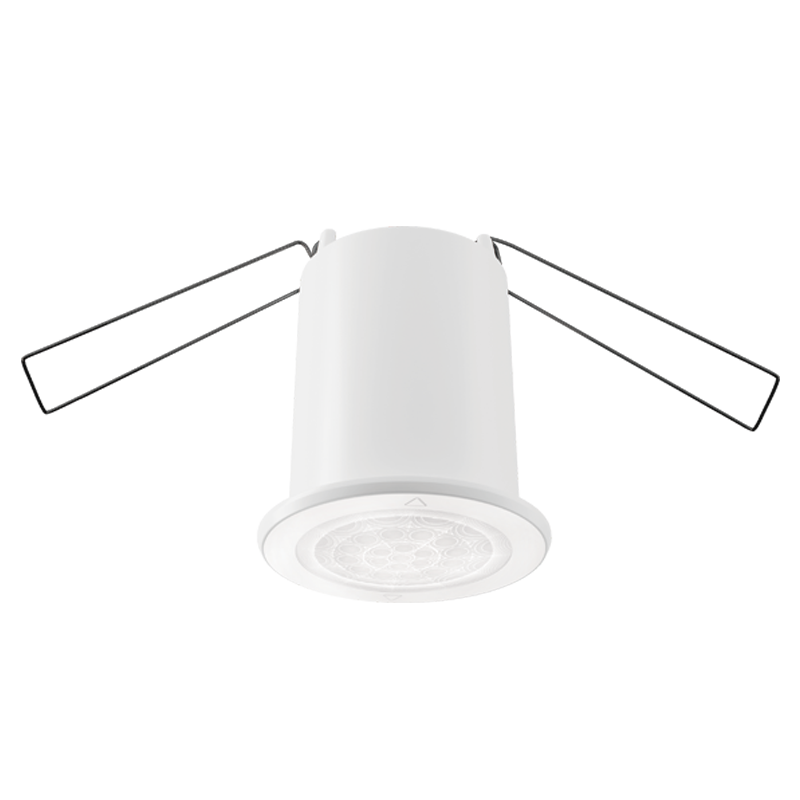

Infrared Motion Sensor
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion.By integrating with the Tuya protocol, this sensor can seamlessly integrate into the Tuya system. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
|
Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting.For example, the sensor can interact with the smart lighting system to achieve touchless light control. |
   |
|
Designed Specifically for Smart Engineering Industrial-grade product materials,The quad-band infrared array thermal sensor responds faster and detects response signals more stably.The indicator light automatically adjusts its brightness to show the working status of the sensor, facilitating installation and debugging, and can be set to turn off. |
|
|
Supports the Tuya System This sensor can seamlessly integrate into the Tuya system, enabling intelligent control of lighting devices, including smart switches, dimming, and making full use of natural light. The openness, modularity, and versatility of the Tuya system allow this sensor to perform excellently in residential, commercial, and industrial applications. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. |
|
|
Multi-scenario applications Accurate detection and tracking to meet different detection needs in various spaces. Suitable for a variety of scenarios, including offices, shopping malls, hotels, and other commercial environments. In these scenarios, sensors can enhance the lighting experience, achieving intelligent, efficient energy saving. |
|
|
Efficient Energy Saving and Safety Reliability With its efficient energy-saving and safety-reliable features, the MiNi PIR sensor has been widely used and praised in residential, office buildings, schools, factory,and community projects. |
|
| 规格 | 数值 |
| 探测模式 |
Pyroelectric Infrared Receiver
|
| 安装高度 |
2.0~4.0米
|
| 探测角度 | 360° |
| 探测范围 | 安装高度在3米时
移动侦测直径≤6.0米
|
| 探测灵敏度 | 0~100% |
| 照度传感 | 0～32000 Lux（精度±4%） |
| 产品尺寸 |
φ50mm*42mm*58mm
|
| 开孔尺寸 |
φ42mm
|
| 产品重量 | 65g |
|
电源输入
|
100~240VAC
|
| 工作环境 | 温度-20～45℃ 湿度<95% |
| 延迟时间 | 1～3600秒 |
|
继电器负载
|
100~240VAC,≤2A
|
| LED 指示灯 | ①收到配置命令快闪3秒 ②检测有人时常亮，指示灯亮度随环境照度自动调光 ③可设置关闭模式(检测有人时也不亮) |
