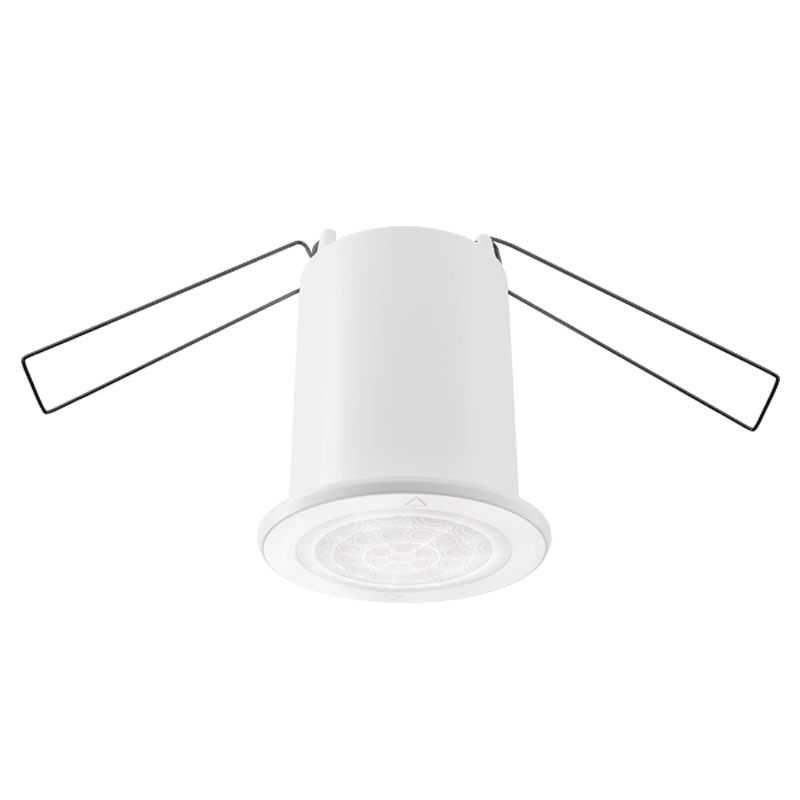

Infrared Motion Sensor
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. Integrated with a single streetlight control line, capable of directly controlling lighting equipment with a maximum load of 300W.It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
|
Motion Detection Function The MiNi PIR infrared pyroelectric sensor has the capability to detect movement, capable of sensing the movement status of moving individuals within the sensing area, suitable for smart control scenarios such as automatic lighting.For example, the sensor can interact with the smart lighting system to achieve touchless light control. |
   |
|
Directly Switch a Lighting Circuit This sensor can directly switch a lighting circuit with a maximum load of 300W. This means that regardless of the smart scenario it is used in, the sensor can switch the lighting based on detected human presence and motion status, achieving energy savings and automated management. |
|
|
Designed specifically for smart engineering Industrial-grade product materials,The quad-band infrared array thermal sensor responds faster and detects response signals more stably.The indicator light automatically adjusts its brightness to show the working status of the sensor, facilitating installation and debugging, and can be set to turn off. |
|
|
Built-in Digital Illuminance Measurement Chip This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can monitor ambient light intensity, realize monitoring and control of light intensity to adapt to different lighting needs. |
|
|
Multi-scenario applications Accurate detection and tracking to meet different detection needs in various spaces. Suitable for a variety of scenarios, including offices, shopping malls, hotels, and other commercial environments. In these scenarios, sensors can enhance the lighting experience, achieving intelligent, efficient energy saving. |
|
|
Efficient Energy Saving and Safety Reliability With its efficient energy-saving and safety-reliable features, the MiNi PIR sensor has been widely used and praised in residential, office buildings, schools, factory,and community projects. |
|
| Designation | Value |
| Detection Mode | Pyroelectric Infrared Receiver |
| Install Height | 2.0 ~ 4.0 meters |
| Detection Angle | 360° |
| Detection Range | When the installation height is 3 meters Motion detection diameter ≤ φ6.0 meters |
| Illuminance Sensing | 0 ~ 32000 Lux (Accuracy ± 1%） |
| Delay Time | 1 ~ 3600 seconds |
| Product Dimensions | φ50mm*42mm*58mm |
| Hole Size | φ42mm |
| Product Weight | 65g |
| Working Environment | Temperature -20 ~ 45 ℃ Humidity < 95% |
| Power Input | AC100~240V |
| Relay load | 100~240VAC,≤2A |
| Output | 1 Channel Switch（300W) |
| LED Indicator | Displays the working status of the sensor, can be set to turn off |
